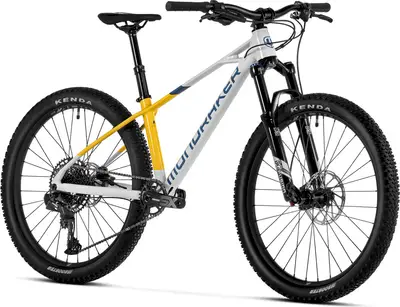

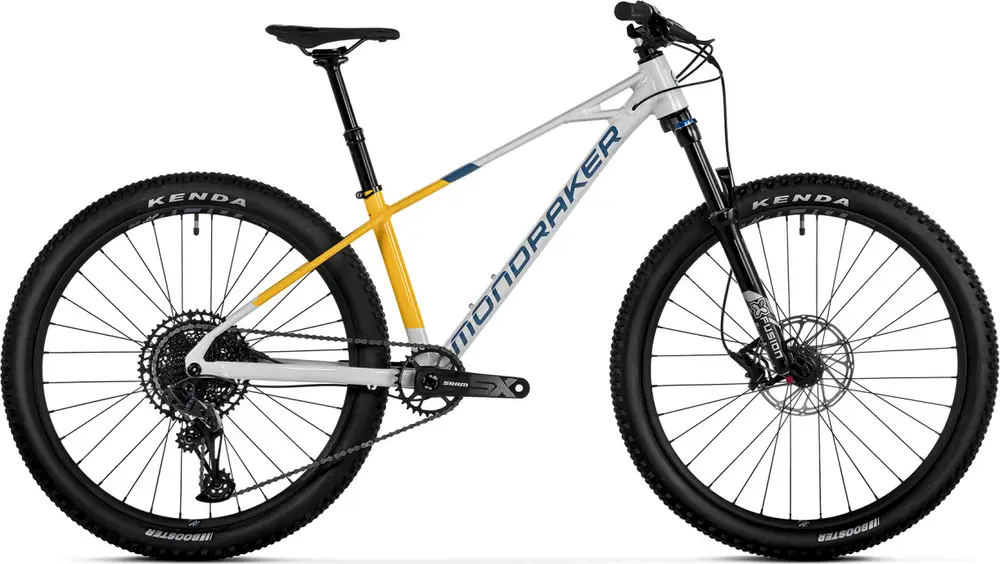

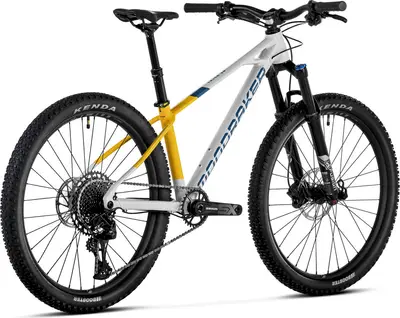

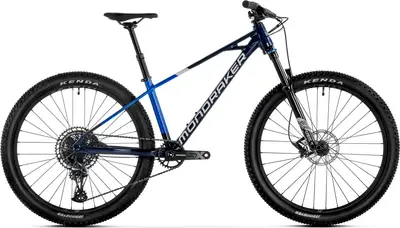

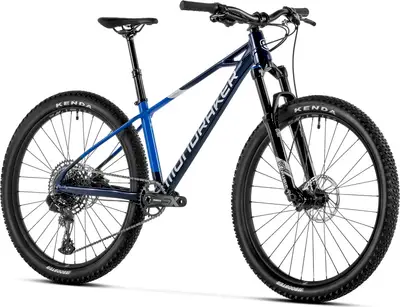

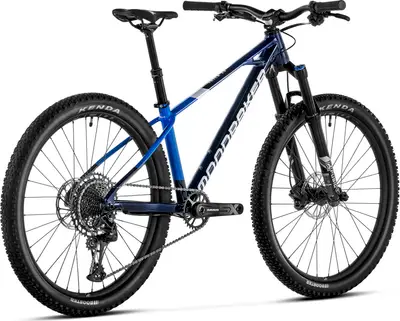

2024 Mondraker
TRICK 26
A 26″ aluminum frame general youth bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
£1,549($1,961)| Weight | 27.6 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | Aluminum |
| Wheels | 26″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full TRICK model range
View Comparison
| Frame | Trick 26 6061Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142mm rear axle BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Colors: Blue / White; Gray / Yellow/blue |
|---|---|
| Fork | X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload Travel: 120mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 45mm |
| Handlebar | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | SDG Fly JR |
| Seatpost | Onoff Pija dropper internal, diameter 31.6x100mm Type: Dropper |
| Pedals | SDG Slater JR |
| Grips | Onoff Twin, 1lock-on |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|---|---|
| Crank | SRAM SX Eagle, DUB axle, Direct mount chain ring, 155mm, Rings: 30T, steel, X-Sync |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level, tooled reach adjust, lever pivot bushings |
| Rims | MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | DA210RSRA01 12x142mm, cup & cone ball bearings, IS 6 bolts, HG freehub |
| Tires | Front: Kenda Booster 26x2.4 single compound 30TPI, wire bead, Rear: Kenda Booster 26x2.4 single compound 30TPI, wire bead |
Last updated May 18
