Today’s Deals2024 Mondraker

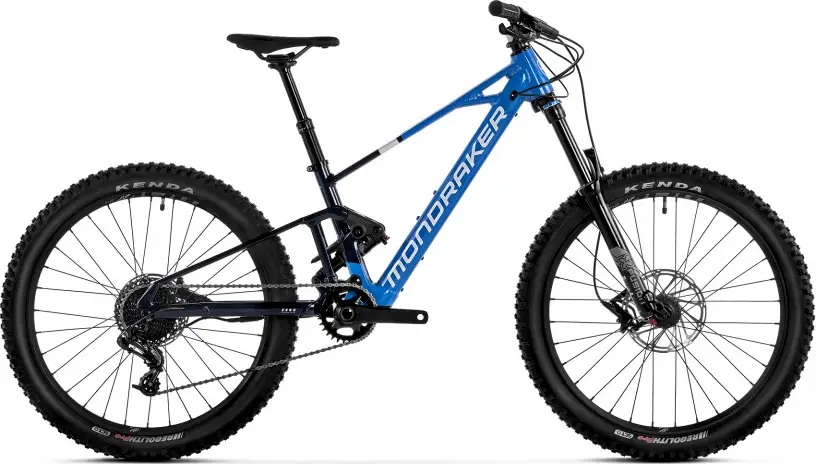

F-PLAY 24
A 24″ aluminum frame general youth e-bike with upper mid-range components and sram level hydraulic disc brakes.
Compare the full range
| Weight | 35.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 120 / 120mm |
| Fork | Aluminum |
| Shock | X-Fusion |
| Wheels | 24″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | GX |
| Motor | MAHLE hub-drive |
| Battery | MAHLE 250Wh |
| Brakes | SRAM Level Hydraulic Disc |
| Seatpost | Dropper |
| Frame | F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload Travel: 120mm Spring Type: Air |
| Shock | X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings Travel: 120mm |
| Bottom Bracket | BSA, 73mm |
| Headset | Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | SDG Fly JR |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 100mm Type: Dropper |
| Pedals | SDG Slater JR |
| Grips | Onoff Twin, 1lock-on |
| Rear Derailleur | SRAM GX, 10s, short cage, X-actuation 1:1 |
|---|---|
| Crank | Samox DM 30T steel, 152mm, Rings: 30T, steel |
| Shifters | SRAM trigger GX 10s, X-actuation 1:1 |
| Chain | SRAM PC1031 10s, Powerlock |
| Brakes | Front: SRAM Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Level Hydraulic Disc |
| Brake Levers | SRAM Level, tooled reach adjust, lever pivot bushings |
| Rims | MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35, HG freehub |
| Tires | Front: Kenda Regolith 24x2.4 120TPI, Folding TLR, Rear: Kenda Regolith 24x2.4 120TPI, Folding TLR |
| Motor | Mahle-Ebikemotion X-35 |
|---|---|
| Battery | Mahle-Ebikemotion Internal 250Wh |
| Display | Mahle-Ebikemotion |
