Today’s Deals2024 Mondraker

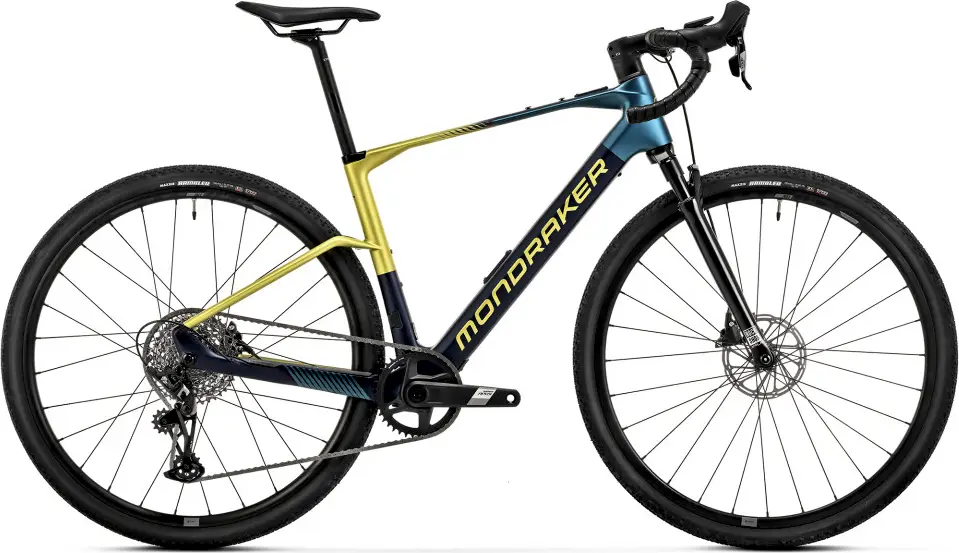

DUSTY R
A carbon frame gravel e-bike with upper mid-range components and sram apex hydraulic disc brakes.
Compare the full range
| Weight | 31.1 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Hardtail, 40mm |
| Fork | RockShox Rudy XPLR |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Apex XPLR |
| Motor | MAHLE 55Nm hub-drive |
| Battery | MAHLE 350Wh |
| Brakes | SRAM Apex Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2023 · Jordan Villella
Mondraker decided if it entered the gravel market, it would be on its own terms and with its distinct style.
Feb 2023 · Jan Richter
What the first drop bar bike by Mondraker is capable of: we tested it for you.
High sense of safety on steep downhills
Confident and agile handling
A lot of fun – uphill and downhill
Suspension fork and dropper post only in top spec
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. BB Standard: 386EVO, 86mm, Press Fit |
|---|---|
| Fork | RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset Travel: 40mm |
| Bottom Bracket | Mahle DUB pressfit, sealed bearings, w/ torque sensor |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Stem | OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Handlebar | OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Saddle | FIZIK Terra Argo X7 150mm |
| Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm Type: Rigid |
| Grips | OnOff HEX Bartape |
| Rear Derailleur | SRAM Apex XPLR 12s |
|---|---|
| Crank | SRAM Apex 1 Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, Rings: SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
| Shifters | SRAM Apex D1 12s, X-Actuation 1:1, single click |
| Chain | SRAM Apex, 12s, Powerlock |
| Brakes | Front: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Apex Hydraulic Disc |
| Brake Levers | SRAM Apex, contact point adjustment, tooled reach adjust, aluminum levers |
| Rims | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, HG freehub |
| Tires | Front: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead, Rear: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Motor | Mahle X20 Drive Unit |
|---|---|
| Battery | Mahle X20 IX350Wh |
| Display | Pulsar One Wireless |
