Today’s Deals2023 Mondraker

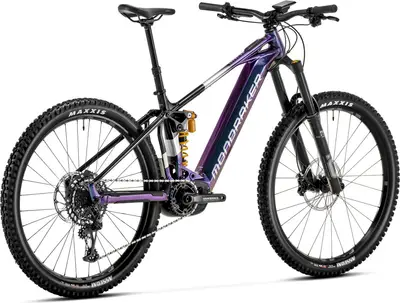

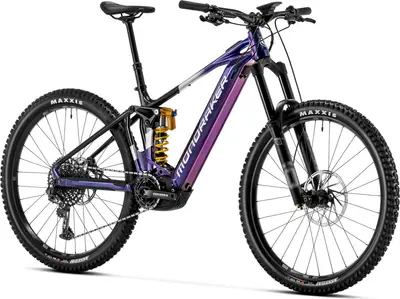

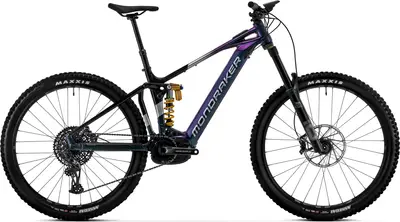

LEVEL XR
A 29″ aluminum frame full suspension enduro e-bike with ultra high-end components.
Compare the full range
Manufacturer Price
£7,999($10,733)| Weight | 57.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 170 / 180mm |
| Fork | Öhlins RXF38 |
| Shock | Öhlins |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | X01 Eagle, GX Eagle |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | SRAM Code Silver Stealth Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full LEVEL model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2023 · Ron Koch
Long-travel, electric-assist models like this Mondraker Level RR make gravity-friendly trails an absolute blast and render shuttles or chair lifts totally optional.
May 2022 · Alex Evans
Impressive when tackling gnarly terrain, but its weight and reduced battery life limit its all-round performance
Impressively composed in big terrain
Well-damped tyres with loads of grip
Weight doesn’t hinder it in technical or tight terrain
Impressive spec for the money
Bosch motor has loads of power
Suspension can feel harsh and punishes back wheels
Weight might be too much for lighter riders
A long seat tube and big standover could limit potential riders
May 2022
The Mondraker Level R review shows this bike's potential to be a ripper and is our pick of the shootout for the gnarliest high speed terrain. Read more now!
Bosch Motor Power
Rough terrain devouring
Pleasant pedaling
Big hit capabilities
Beautiful
Loves charging chunk!
E-Deemax Wheelset isn’t worthy
Bosch LED Remote
Brakes could be improved
Limited agility/hefty weight
| Frame | Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers |
|---|---|
| Fork | Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel: 180mm Spring Type: Air |
| Shock | Öhlins TTX22M.2 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings Travel: 170mm |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Rear Derailleur | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM GX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: SRAM Code Silver Stealth Hydraulic Disc |
| Brake Levers | SRAM Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Rims | e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
|---|---|
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Motor | Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
|---|---|
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
