2023 Mondraker
LEADER 20

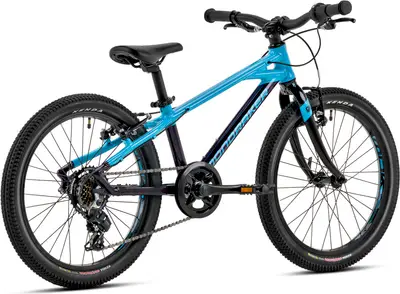

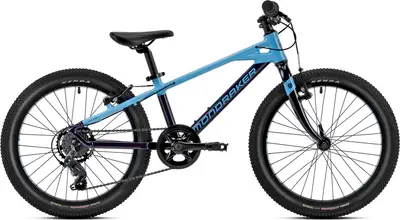

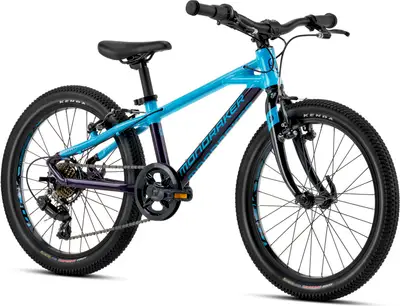

A 20″ aluminum frame general youth bike with mid-range components and tektro rim brakes.
Compare the full range

Manufacturer Price

£449($602)

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full LEADER model range

Geometry

Specs

Build

Frame	Leader 20 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, QR 9mm rear axle BB Standard: BSA, Threaded
Fork	MDK 20 Kid, Alloy stanchions, Chromoly steering tube
Bottom Bracket	CH-52
Headset	CH-9280, Internal ZS, 44mm external diameter cup
Stem	MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 35mm
Handlebar	MDK XC 1.0, 6061 alloy, rise: 25mm, width: 560mm, 9º backsweep, 5º upsweep, 25.4mm barbore
Saddle	Mondraker Leader Kids series
Seatpost	MDK XC, 6061 T6 alloy, diameter 27.2mm, length 250mm, offset 15mm Type: Rigid
Pedals	Wellgo LU-P28
Grips	Onoff Diamond, 75mm

Groupset

Rear Derailleur	Shimano TY200-SS, super short cage, 7s
Crank	Prowheel, 140mm, Rings: 36T
Shifters	Shimano RV200-7R, Revoshift, 7s
Chain	KMC Z-7, 7s
Brakes	Front: Tektro Alloy V-Brake, Rear: Tektro Alloy V-Brake Type: Tektro Rim
Brake Levers	Tektro 2-finger kids

Wheels

Rims	MDK-20 Alloy, 32 spokes
Spokes	CN round stainless steel
Front Hub	Formula OV31FQR, 9x100mm QR axle, cup & cone ball bearings
Rear Hub	Formula OV31RQR, 9x135mm QR axle, cup & cone ball bearings
Tires	Front: Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead, Rear: Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead
