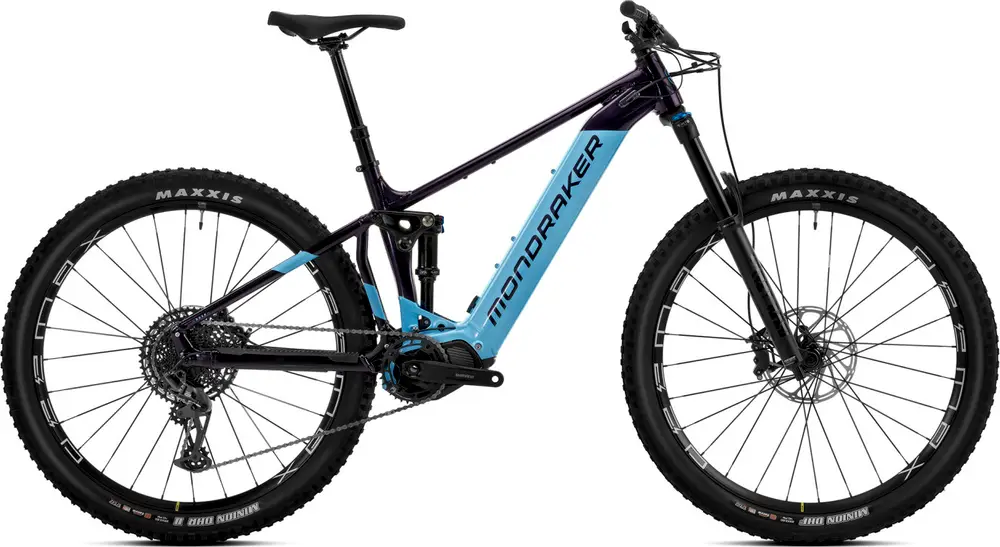

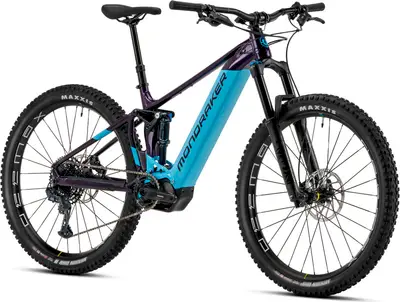

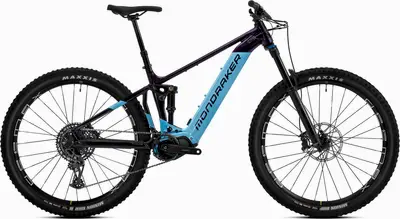

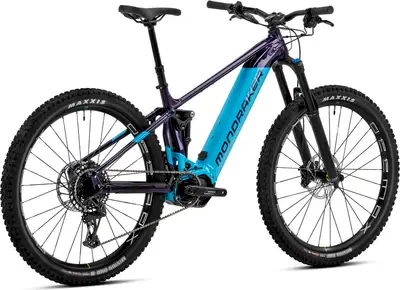

Today’s Deals2023 Mondraker
DUSK R
A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
£6,499($8,744)| Weight | 54.0 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 150 / 160mm |
| Fork | Fox Rhythm Float 36 |
| Shock | Fox Float DPS Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, SX Eagle |
| Motor | Shimano 600W 85Nm mid-drive |
| Battery | 720Wh |
| Brakes | SRAM DB8 Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2021 · Andrew “Chili Dog” Villablanca
Mondraker's Dusk R and RR eBikes are perfectly suited for long days in the saddle, or miles exploring new single track. Click to read our comparison!
Great Adventure Rig
Solid Suspension Spec
Climbing
Cornering
Factory Spec Tires
Wheels on R Model
Not Playful
Sep 2020 · Felix Stix
The Mondraker Dusk gets an update with the brand new Shimano EP8 motor for 2021. We've got the first ride review for you here.
| Frame | Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.*Optional external battery BB Standard: STEPS, Press Fit |
|---|---|
| Fork | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm |
| Bottom Bracket | STEPS, press-fit |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | MDK ebike black |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm Type: Dropper |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | Shimano Steps EP801 ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: SRAM DB8 Hydraulic Disc |
| Brake Levers | SRAM DB8, tool reach adjust |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|---|---|
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts |
| Tires | Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Motor | Shimano STEPS EP801 |
|---|---|
| Battery | Simplo internal 720Wh |
| Display | Shimano EN600 |
First added July 26
Last updated April 6
Not listed for 792 days
