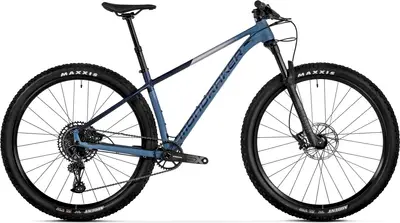

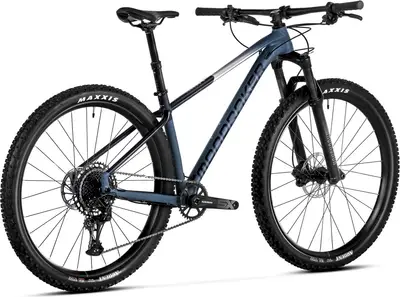

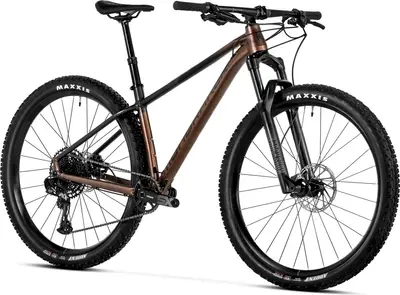

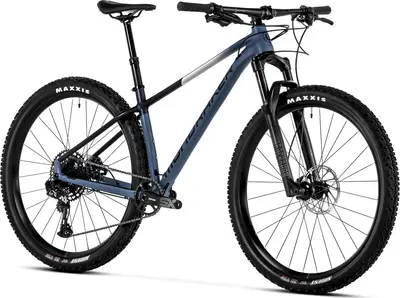

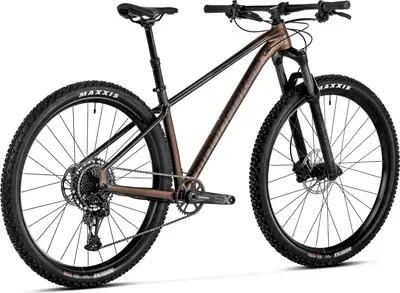

2023 Mondraker
CHRONO DC R
A 29″ aluminum frame hardtail trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
£1,749($2,215)| Weight | 30.6 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RockShox Recon Silver RL |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle, SX Eagle |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full CHRONO model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
May 2024 · Guy Kesteven
Does this stunning-looking Spanish hardtail deliver on its downcountry promise, or do confused spec, backward geometry and niche frame features choke it’s obvious potential? Guy Kesteven finds out…
Gorgeous looking, sweet flowing, lightweight trail frame
Top spec lightweight XC trail fork
UDH rear hanger
Backward rather than Forward Geometry
Inset Fidlock mounts limit seatpost stroke
Heavy wheels and cassette
Crowded lockout and dropper controls
Harsh, flat bars don’t fit the DC vibe
Expensive component mix
Nov 2023
Downcountry now in carbon, an entirely new Mondraker Chrono Carbon DC hardtail goes harder with longer travel & slacker Forward geometry…
Apr 2020 · Alan Muldoon
From the very first pedal stroke, the Mondraker Chrono Carbon R felt purposeful, poised and precise, instantly reacting to the most subtle of rider inputs.
Fast, reactive ride
Not the most compliant
| Frame | Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design BB Standard: BSA, 73mm, Threaded Colors: Bronze / Dark Gray; Blue / Blue |
|---|---|
| Fork | RockShox Recon Silver RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload Travel: 120mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Saddle | Mondraker MDK Series, SRX, steel rail |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm Type: Dropper |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Rear Derailleur | SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|---|---|
| Crank | SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52, Rings: 34T, steel, X-Sync 2 |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level, tooled reach adjust, lever pivot bushings |
| Rims | Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes |
|---|---|
| Spokes | Mavic J-bemd steel round spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead, Rear: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
