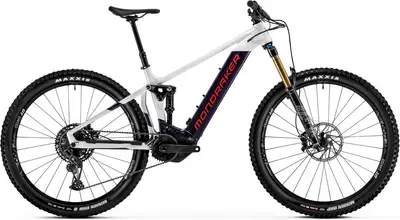

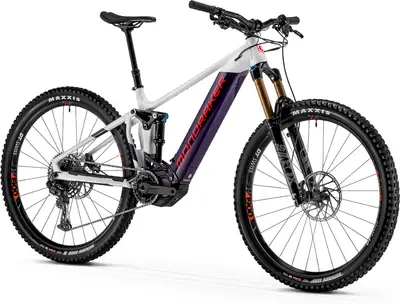

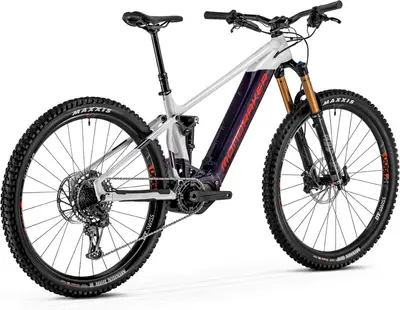

Today’s Deals2022 Mondraker
DUSK RR
A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
| Weight | 52.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 150 / 160mm |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float DPS Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle |
| Motor | Shimano 500W 85Nm mid-drive |
| Battery | 630Wh |
| Brakes | SRAM Code R Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2021 · Andrew “Chili Dog” Villablanca
Mondraker's Dusk R and RR eBikes are perfectly suited for long days in the saddle, or miles exploring new single track. Click to read our comparison!
Great Adventure Rig
Solid Suspension Spec
Climbing
Cornering
Factory Spec Tires
Wheels on R Model
Not Playful
Sep 2020 · Felix Stix
The Mondraker Dusk gets an update with the brand new Shimano EP8 motor for 2021. We've got the first ride review for you here.
| Frame | Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery Color: White / Deep Purple/red |
|---|---|
| Fork | Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm |
| Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x170mm Type: Dropper |
| Grips | ONOFF Diamond, 1lock-on, 135mm |
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | FSA, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: SRAM Code R Hydraulic Disc |
| Brake Levers | SRAM Code R, tool-free reach adjust |
| Rims | DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
|---|---|
| Spokes | DT Hybrid SP, straightpull |
| Front Hub | DT 370, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 370, Boost 12x148mm, 18T Ratchet LN system, IS 6 bolts |
| Tires | Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Motor | Shimano STEPS EP800 |
|---|---|
| Battery | Simplo internal 630Wh |
| Display | Shimano STEPS E8000 |
