Today’s Deals2022 Mondraker
CRAFTY XR

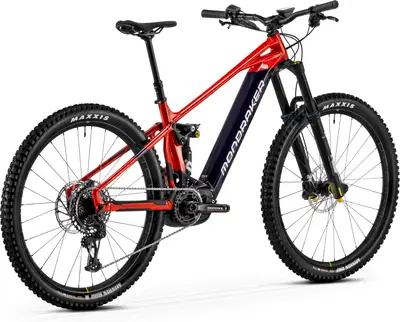

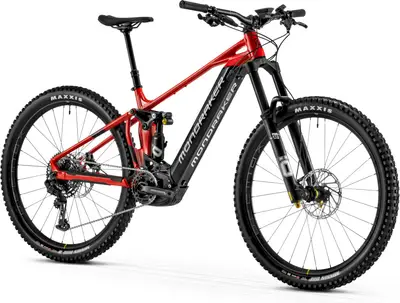

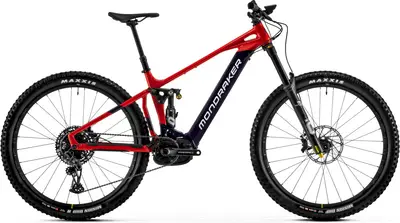

A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
| Weight | 54.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 150 / 170mm |
| Fork | Öhlins RXF38 |
| Shock | Öhlins |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 750Wh |
| Brakes | SRAM G2 RS Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Summary
The Mondraker Crafty is a high-performance enduro eMTB that excels in stability and traction, making it a favorite among aggressive riders for technical terrain. Its Bosch Performance Line CX motor and 750Wh battery provide powerful assistance, while the Ohlins or Fox suspension components ensure precise handling. However, its weight and long wheelbase can make it less nimble for some riders, and the SRAM G2 R brakes are often cited as inadequate.
Excellent geometry and stability
Powerful Bosch Performance Line CX motor
High-capacity 750Wh battery
Precise handling with Ohlins or Fox suspension
Good traction and confidence on technical terrain
Heavy weight and long wheelbase reduce agility
SRAM G2 R brakes lack stopping power
Fixed battery design limits flexibility
Some models have a steep head angle
Overdamped shock tuning on some models
Mondraker has done a typically awesome job of marrying up two seemingly conflicting characteristics in the Crafty XR.
Bike PerfectThe Race Motor puts the Crafty XR LTD at the top of the pile, pitching it as Mondraker’s top offering for Enduro eMTB racing.
BikerumorThe Crafty probably isn’t for everyone. Smaller or more timid riders will find it hard to muscle the bike around and ride it dynamically. But for taller, more aggressive riders its stability and traction make it easy to ride technical terrain flat out.
BikeRadarFeedback?
View all reviews
May 2023 · Knut Nes
Bosch delivered a prototype bike so we could finally test the Bosch Performance CX Race motor. Attached to that motor was a Mondraker Crafty Carbon. The specs don’t correspond to any of the 2023 models, so we’ll just call it the Crafty. Riding...
Dec 2022 · Jessie-May Morgan
The Mondraker Crafty Carbon XR LTD is the latest Enduro eMTB to benefit from Bosch Performance Line CX Race Motor with exclusive 400% Assist
Apr 2022 · Drew Rohde
Mondraker’s Crafty SE isn’t for everyone, but for those who like the Mondraker suspension feel, their Forward Geometry or are looking for a bike that’s actually in stock, this could be a good option for you.
Mondraker looks
Bosch speed and power
Climbing machine
Fast and fun
Good descending body position
Spokes came loose
Exo+ Rear tire spec
Mondraker suspension is stiff
Apr 2022 · Guy Kesteven
We take Mondraker’s stunning, Ohlins-suspension-equipped Crafty XR e-mountain bike for a thorough charge around the Lake District to test its Bosch Smart System and 750Wh battery
Excellent geometry
Superlative Ohlins damped suspension
Bigger 750Wh battery
Bosch Smart System controllers
Light for its category
Ohlins damper difficult to tune
Fixed battery
Cheap chain
Sep 2021 · Alan Muldoon
Mondraker Crafty Carbon XR with built-in MIND suspension data acquisition. Yep, integrated data-logging comes to mountain biking courtesy of Mondraker.
The myMondraker app provides a user friendly step-by-step guide to suspension set-up on your phone. MIND provides real world data on how you’re using the travel, which makes fine tuning your ride a breeze. Pins on the GPS trace indicate air time and you can instantly see how often you bottom-out the suspension. And while it doesn’t offer comprehensive data, it’s an affordable and easy-to-use system.
Currently MIND offers no data on shaft speed, which means you have no info to adjust damping. Rechargeable batteries drain quickly. Waiting for a GPS signal gets frustrating.
Apr 2021 · Felix Stix
MONDRAKER are well known for their extreme geometry. How does the Forward Geometry concept of the Spanish manufacturer work with the CRAFTY CARBON XR? Can the sexy carbon Spaniard be tamed or does it just shoot down the hill in a straight line? The answers will surprise you!
Incredibly versatile
Top trail performance, both uphill and downhill
Look and feel
Permanently integrated battery can't be removed
Position of the charging port and Kiox display
Jan 2021 · Seb Stott
Easy to ride fast over technical terrain, but hard to handle on tamer trails and brakes let it down
Super-stable when riding fast, with excellent cornering grip
Highly capable uphill thanks to powerful motor and good weight distribution
High weight and long wheelbase make it hard to move around
I’d upgrade the brakes ASAP
Nov 2019 · Hector Saura
Mondraker presents their new electric mountain bike Crafty Carbon models, breaking the rules with its flagship model RR SL by being the first e-MTB with 29″ and 150mm of travel under 20kg. Main Features Frame: Stealth Air Carbon Wheels: 29″ Suspension: Zero Travel front/rear: 160mm/150mm Hub spacing front/rear: Boost 110×15mm/148×12mm Drivetrain: 1×12 Motor: Bosch Performance Line CX 4 Battery: Bosch Powertube 625Wh (Crafty RR SL also available with 500Wh battery) Weight: 19,3kg (Crafty RR SL + 500Wh battery); 19,8kg (Crafty RR SL + 625Wh battery); 21,3kg (Crafty RR); 21,8kg (Crafty R) Sizes: S, M, L, XL Prices: 7.499€ (Crafty R); 8.999€
| Frame | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Color: Red / Deep Purple |
|---|---|
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel: 170mm Spring Type: Air |
| Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm Type: Dropper |
| Grips | Onoff Diamond, 1lock-on, 135mm |
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM NX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: SRAM G2 RS Hydraulic Disc |
| Brake Levers | SRAM G2 RS, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
|---|---|
| Spokes | Mavic straightpull duble butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
|---|---|
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Kiox 300 |
