Today’s Deals2022 Mondraker

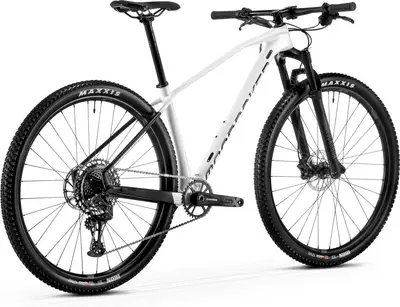

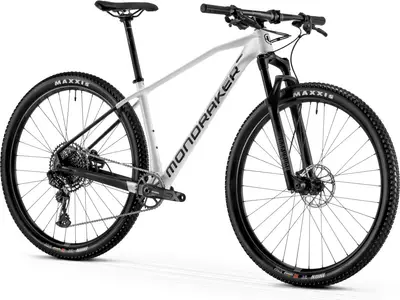

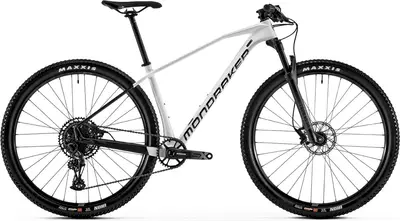

CHRONO CARBON
A 29″ carbon frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
| Weight | 24.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Hardtail, 100mm |
| Fork | X-Fusion RC32 |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle, SX Eagle |
| Brakes | SRAM Level TL Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2023 · Cory Benson
Downcountry now in carbon, an entirely new Mondraker Chrono Carbon DC hardtail goes harder with longer travel & slacker Forward geometry…
Apr 2020 · Alan Muldoon
From the very first pedal stroke, the Mondraker Chrono Carbon R felt purposeful, poised and precise, instantly reacting to the most subtle of rider inputs.
Fast, reactive ride
Not the most compliant
| Frame | Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design BB Standard: BSA, 73mm, Threaded Color: White / Carbon |
|---|---|
| Fork | X-Fusion RC32 29, 100mm, air spring, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 51mm. Settings: 2 pos remote compression (open/lock), rebound, air preload Travel: 100mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Saddle | Mondraker XC Series, steel rail |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm Type: Rigid |
| Grips | Onoff Diamond, 1lock-on, 135mm |
| Rear Derailleur | SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|---|---|
| Crank | SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm, Rings: 34T, steel, X-Sync 2 |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Level TL Hydraulic Disc |
| Brake Levers | SRAM Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts |
| Tires | Front: Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead, Rear: Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead |
