2021 Mondraker

Play 26

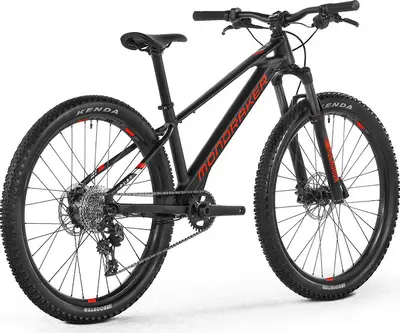

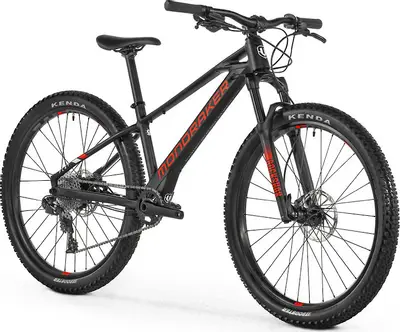

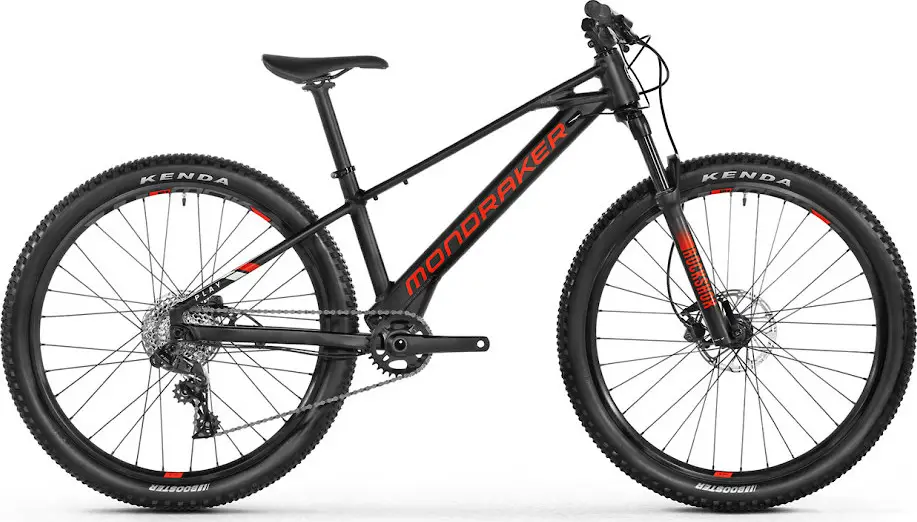

A 26″ aluminum frame mountain youth e-bike with upper mid-range components and shimano deore hydraulic disc brakes.
Compare the full range

Weight34.8 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkRockShox Judy Silver TK
Wheels26″ Aluminum
Drivetrain1 × 11
GroupsetDeore
MotorMAHLE hub-drive
BatteryMAHLE
BrakesShimano Deore Hydraulic Disc
View on mondraker.comLearn about Mondraker
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Handling
nimblestable
Play 26
Other Mountain Youth bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

21 mph

Play 26

Highest gear

(descending)

Geometry
Specs
Build
Frame

Aluminum

Fork

RockShox Judy Silver TK, TurnKey damper, Solo Air spring, compression adjust (low-speed to lock), rebound adjust, 40mm offset

Travel: 100mm

Spring Type: Air

Shock

None

Headset

Onoff Saturn, sealed angular contact bearings

Stem

MDK XC, 6061 forged alloy, 35mm length, 31.8mm bar clamp, 0° rise

Handlebar

MDK XC 1.0, 6061 alloy, 25mm rise, 650mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter

Saddle

SDG Fly JR

Seatpost

MDK XC 0-R, 6061 T6 alloy, 350mm length

Type: Rigid

Pedals

None

Grips

Onoff Twin, single lock-on, 135mm length

Groupset
Rear Derailleur

Shimano Deore M5100, 11-speed, SGS cage, SHADOW RD+

Front Derailleur

None

Crank

Samox, 155mm length

Shifters

Shimano Deore M5100, 11-speed, RAPIDFIRE+

Cassette

Shimano Deore M5100, 11-speed, 11-51 tooth, HYPERGLIDE

Chain

Shimano HG601, 11-speed

Chain Guide

None

Brakes

Shimano M4100, 2-piston, resin pads, Shimano RT56 160mm 6-bolt rotors

Type: Shimano Deore Hydraulic Disc

Brake Levers

Shimano M4100, alloy, tooled reach adjust

Wheels
Rims

MDK-XP1, 23mm internal width, tubeless ready, 32 hole

Spokes

CN round stainless steel

Front Hub

Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver

Rear Hub

Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver

Tires

Kenda Booster, single compound, 30 TPI, wire bead, 26" x 2.4"

Electric Components
Motor

Mahle-Ebikemotion X-35 rear hub

Battery

Mahle-Ebikemotion, integrated, non-removable

Remote

Mahle-Ebikemotion

Display

Mahle-Ebikemotion

Rider Notes
