Today’s Deals2021 Mondraker
F-Play 24

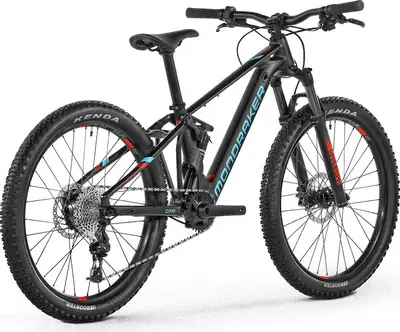

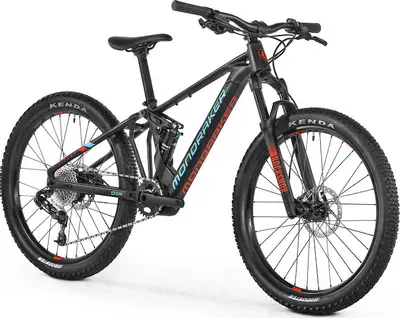

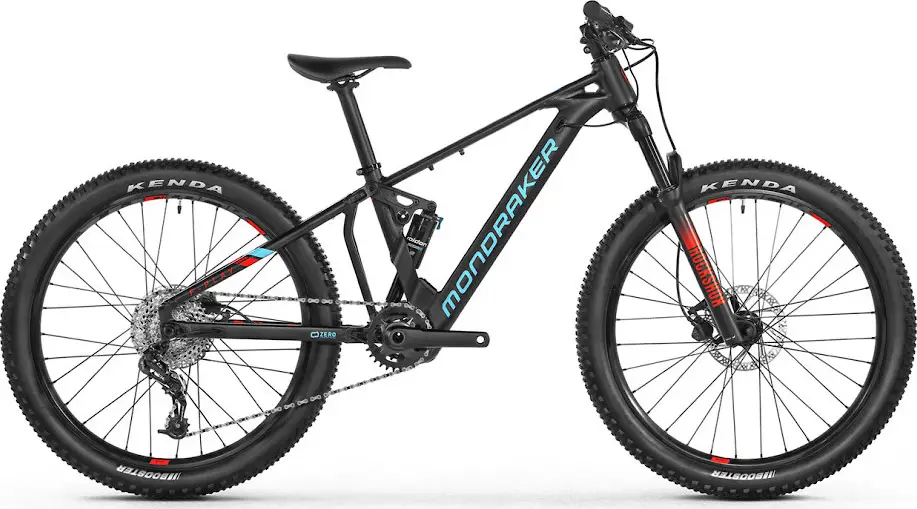

A 24″ aluminum frame mountain youth e-bike with upper mid-range components and tektro hydraulic disc brakes.
| Weight | 36.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 120 / 100mm |
| Fork | RockShox Judy Silver TK |
| Shock | Suntour |
| Wheels | 24″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | MAHLE hub-drive |
| Battery | MAHLE |
| Brakes | Tektro Hydraulic Disc |
| Frame | Aluminum |
|---|---|
| Fork | RockShox Judy Silver TK, TurnKey damper, Solo Air spring, compression adjust (low-speed to lock), rebound adjust, 40mm offset Travel: 100mm Spring Type: Air |
| Shock | SR Suntour Raidon R, low-speed rebound adjust, 210mm x 47.5mm Travel: 120mm |
| Headset | Onoff Saturn, sealed angular contact bearings |
| Stem | MDK XC, 6061 forged alloy, 35mm length, 31.8mm bar clamp, 0° rise |
| Handlebar | MDK XC 1.0, 6061 alloy, 25mm rise, 680mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Saddle | SDG Fly JR |
| Seatpost | MDK XC 0-R, 6061 T6 alloy, 300mm length Type: Rigid |
| Pedals | None |
| Grips | Onoff Twin, single lock-on, 135mm length |
| Rear Derailleur | Shimano Deore M5120, 10-speed, SGS cage, SHADOW RD+ |
|---|---|
| Front Derailleur | None |
| Crank | Samox, 155mm length |
| Shifters | Shimano Deore M4100, 10-speed, RAPIDFIRE+ |

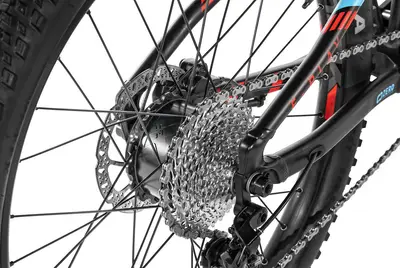

| Cassette | Shimano Deore M4100, 10-speed, 11-46 tooth, HYPERGLIDE |
| Chain | Shimano HG54, 10-speed |
| Chain Guide | None |
| Brakes | Tektro Auriga HDM291, 2-piston, 160mm 6-bolt rotors Type: Tektro Hydraulic Disc |
| Brake Levers | Tektro Auriga HDM291 |
| Rims | MDK-XP1, 23mm internal width, tubeless ready, 32 hole |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver |
| Rear Hub | Front: Formula DC20LW, 9x135mm, Rear: Mahle-Ebikemotion X-35, 9mm, HG driver |
| Tires | Kenda Booster, single compound, 30 TPI, wire bead, 24" x 2.4" |
| Motor | Mahle-Ebikemotion X-35 rear hub |
|---|---|
| Battery | Mahle-Ebikemotion, integrated, non-removable |
| Remote | Mahle-Ebikemotion |
| Display | Mahle-Ebikemotion |
First added December 7
Last updated May 4
Not listed for 1,851 days
