Today’s Deals2021 Mondraker

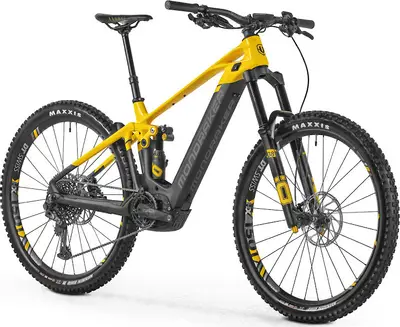

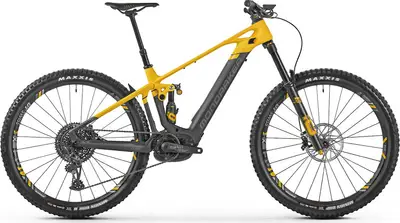

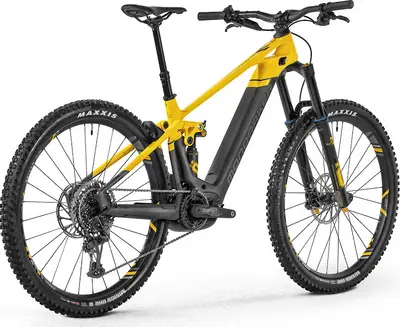

Crafty Carbon XR
A 29″ carbon frame full suspension enduro e-bike with ultra high-end components.
Compare the full range
| Weight | 49.6 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 150 / 170mm |
| Fork | Öhlins RXF38 |
| Shock | Öhlins |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | X01 Eagle, GX Eagle |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch |
| Brakes | SRAM Code RSC Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Summary
The Mondraker Crafty is a high-performance enduro eMTB that excels in technical climbing and downhill stability, thanks to its Forward Geometry and Zero Suspension system. It features powerful Bosch motors and batteries, with models offering up to 750Wh capacity, and is equipped with top-tier components like Öhlins suspension and Mavic wheelsets. However, some reviews note issues with brake performance, tire size, and the positioning of the charging port.
Forward Geometry provides stability and precision
Zero Suspension system offers a plush and controlled ride
Powerful Bosch motor and large battery options
Top-tier components like Öhlins suspension and Mavic wheelsets
Excellent technical climbing capabilities
Inadequate brakes on some models
Drifty tire size and slightly tall frame
Poorly positioned charging port
High weight makes it hard to maneuver
Some components may require upgrades
Mondraker has done a great job of wrapping its outstanding Forward Geometry handling and Zero Suspension around the latest Bosch motor and battery.
Bike PerfectThe Race Motor puts the Crafty XR LTD at the top of the pile, pitching it as Mondraker’s top offering for Enduro eMTB racing.
BikerumorThe Öhlins suspension is the absolute highlight of the Mondraker.
E-Mountainbike MagazineThe real problem is the SRAM G2 R brakes, which are simply inadequate for a 25kg ebike.
BikeRadarMIND is as unobtrusive as it gets.
MBRFeedback?
View all reviews
Dec 2022 · Jessie-May Morgan
The Mondraker Crafty Carbon XR LTD is the latest Enduro eMTB to benefit from Bosch Performance Line CX Race Motor with exclusive 400% Assist
Apr 2022 · Guy Kesteven
We take Mondraker’s stunning, Ohlins-suspension-equipped Crafty XR e-mountain bike for a thorough charge around the Lake District to test its Bosch Smart System and 750Wh battery
Excellent geometry
Superlative Ohlins damped suspension
Bigger 750Wh battery
Bosch Smart System controllers
Light for its category
Ohlins damper difficult to tune
Fixed battery
Cheap chain
Nov 2021 · Drew Rohde
The Mondraker Crafty RR SL is of the best looking and lightest eMTBs on the market. Looks, spec and low weight only go so far though. Read our review now!
Agile handling in tech
Pedaling support
Incredible parts spec
Looks and features
Fast and snappy
Downtube battery rattle
Rough terrain feedback through pedals
Steep head angle for some
Rekon Tire Spec
Sep 2021 · Alan Muldoon
Mondraker Crafty Carbon XR with built-in MIND suspension data acquisition. Yep, integrated data-logging comes to mountain biking courtesy of Mondraker.
The myMondraker app provides a user friendly step-by-step guide to suspension set-up on your phone. MIND provides real world data on how you’re using the travel, which makes fine tuning your ride a breeze. Pins on the GPS trace indicate air time and you can instantly see how often you bottom-out the suspension. And while it doesn’t offer comprehensive data, it’s an affordable and easy-to-use system.
Currently MIND offers no data on shaft speed, which means you have no info to adjust damping. Rechargeable batteries drain quickly. Waiting for a GPS signal gets frustrating.
Apr 2021 · Felix Stix
MONDRAKER are well known for their extreme geometry. How does the Forward Geometry concept of the Spanish manufacturer work with the CRAFTY CARBON XR? Can the sexy carbon Spaniard be tamed or does it just shoot down the hill in a straight line? The answers will surprise you!
Incredibly versatile
Top trail performance, both uphill and downhill
Look and feel
Permanently integrated battery can't be removed
Position of the charging port and Kiox display
Dec 2019 · Tom Marvin
I took the RR SL out for a ride around Lausa in Portugal (where the first round of the UCI DH World Cup will be raced in 2020), testing it for one and a half days on loose, rocky, rooty and wet enduro trails. Conditions were far from ideal for testing a bike, so these are initial ride impressions only. Mondraker replaced the stock Maxxis Rekon tyres with a pair of Maxxis Minion DHF/DHR2, with an EXO Plus casing, and its MaxxTerra 3C rubber – a welcome swap
Incredibly impressive rear suspension, backed up by great geometry and very light weight
Very expensive, with compromised battery access and tyres
Nov 2019 · Hector Saura
Mondraker presents their new electric mountain bike Crafty Carbon models, breaking the rules with its flagship model RR SL by being the first e-MTB with 29″ and 150mm of travel under 20kg. Main Features Frame: Stealth Air Carbon Wheels: 29″ Suspension: Zero Travel front/rear: 160mm/150mm Hub spacing front/rear: Boost 110×15mm/148×12mm Drivetrain: 1×12 Motor: Bosch Performance Line CX 4 Battery: Bosch Powertube 625Wh (Crafty RR SL also available with 500Wh battery) Weight: 19,3kg (Crafty RR SL + 500Wh battery); 19,8kg (Crafty RR SL + 625Wh battery); 21,3kg (Crafty RR); 21,8kg (Crafty R) Sizes: S, M, L, XL Prices: 7.499€ (Crafty R); 8.999€
Sep 2018
Mondraker's mid travel e-Crafty XR Plus is an absolute monster when it comes to smashing up and down the rough stuff thanks to super long geometry, a grunty Bosch motor and a whole lot of momentum, but the combination of sheer mass, huge chainstays and suspension that sometimes feeds back a little too much to the rider makes it a handful elsewhere.
| Frame | Carbon Fiber |
|---|---|
| Fork | Öhlins RXF 38, TTX18 Twin Tube cartridge damper, high speed compression lever with climb mode, low-speed compression adjust, rebound adjust, ramp chamber, 44mm offset Travel: 170mm |
| Shock | Öhlins TTX Air, high speed compression lever with climb mode, low-speed compression adjust, rebound adjust, trunnion mount, 205mm x 65mm Travel: 150mm |
| Headset | ACROS custom, angular contact bearings, internal cable routing |
| Stem | Onoff Krypton FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp |
| Handlebar | Onoff Krypton Carbon 1.0, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter |
| Saddle | fi'zi:k Antares R7 |
| Seatpost | Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL) Type: Dropper |
| Pedals | None |
| Grips | Onoff Desert, single lock-on, 135mm length |
| Rear Derailleur | SRAM X01 Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION 1:1 |
|---|---|
| Front Derailleur | None |
| Crank | e*thirteen e*Spec Plus E-Bike, 165mm length |
| Shifters | SRAM GX Eagle, 12-speed, X-ACTUATION 1:1, single click |
| Cassette | SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth |
| Chain | SRAM NX Eagle, 12-speed, with Powerlock |
| Chain Guide | Upper slider |
| Brakes | SRAM Code RSC, 4-piston, steel-backed metal sintered pads, SRAM CenterLine 200mm 6-bolt rotors Type: SRAM Code RSC Hydraulic Disc |
| Brake Levers | SRAM Code RSC, SwingLink and lever pivot bearings, tool-free reach and contact point adjust |
| Rims | DT Swiss HX1501 Spline One 29, 30mm internal width, welded aluminum, tubeless ready, 28 hole |
|---|---|
| Spokes | DT Swiss Hybrid, straight-pull |
| Front Hub | DT Swiss 240, 15x110mm Boost front, 12x148mm Boost rear with 24-tooth Ratchet freehub and XD driver |
| Rear Hub | DT Swiss 240, 15x110mm Boost front, 12x148mm Boost rear with 24-tooth Ratchet freehub and XD driver |
| Tires | Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6" |
| Motor | Bosch Performance Line CX Cruise Gen4 |
|---|---|
| Battery | Bosch Powertube, integrated, non-removable |
| Remote | Bosch Kiox |
| Display | Bosch Kiox |
