Today’s Deals2022 MMR

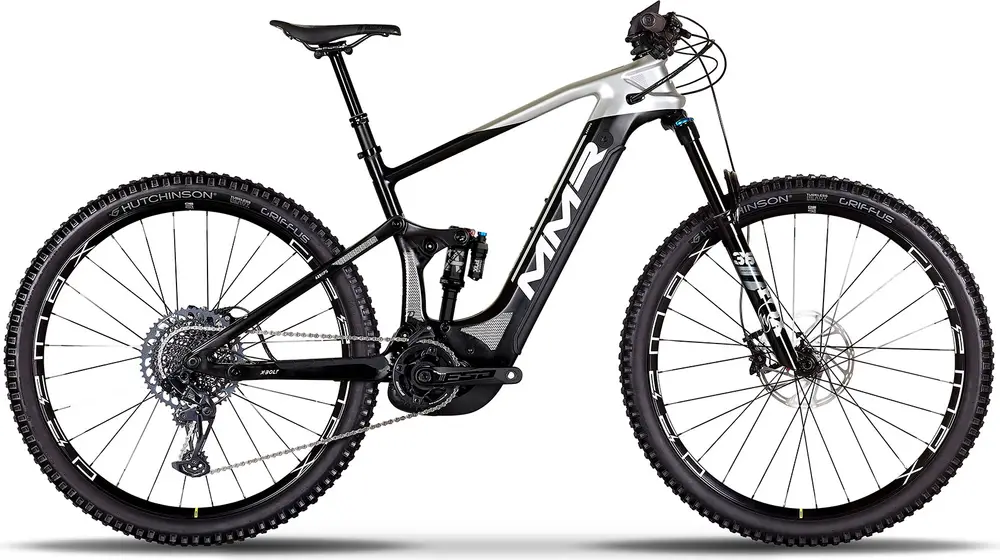

X-BOLT 140 10
A 29″ carbon frame full suspension trail e-bike with high-end components.
Compare the full range
Manufacturer Price
€6,399($7,411)| Frame | Carbon |
|---|---|
| Suspension | Full, 140 / 140mm |
| Fork | Fox Performance Float 36 |
| Shock | Fox Float X Factory |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle |
| Motor | Bosch 600W 85Nm mid-drive |
| Brakes | SRAM DB8 Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several molds. TA 12mm. Internal Cable Routing. Boost. Post Mount. Full Integrated Battery. Head tube 1.5 Tapered. |
|---|---|
| Fork | Fox Performance 36 E-Bike. Travel 140mm. Tapered Travel: 140mm Spring Type: Air |
| Shock | Fox Float X Factory 140 E-bike Travel: 140mm |
| Headset | Ritchey Pro Integrada Tapered 1.5 |
| Stem | Race Face Ride 35 |
| Handlebar | Race Face Ride 35 760mm 10mm Rise |
| Saddle | San Marco GND Dynamic |
| Seatpost | Race Face Aeffect R Dropper 125mm 30.9 Type: Dropper |
| Crank | Fsa Forged E-bike 34 |
|---|---|
| Shifters | SRAM GX Eagle 12V |
| Cassette | SRAM GX Eagle XG-1275 12V 10-52 |
| Chain | SRAM SX Eagle 12V |
| Brakes | SRAM DB8 CL 200/180 Type: SRAM DB8 Hydraulic Disc |
| Rims | Mavic E-DEEMAX 29 35 CL |
|---|---|
| Tires | Hutchinson Griffus TLR Sideskin 29x2.50 |
| Motor | Bosch Performance Line CX |
|---|---|
| Display | Bosch Kiox / Bosch Power Tube 625 |
First added January 4
Last updated February 11
Not listed for 1,219 days
