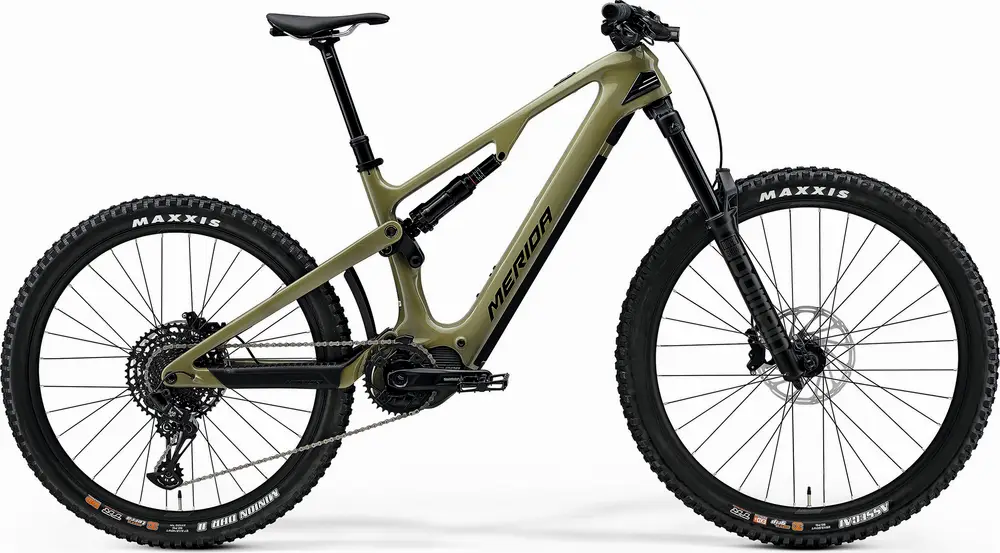

eONE-SIXTY 6000
A 27.5″ carbon frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
A$9,999($6,777)Frame | Carbon |
---|---|
Suspension | Full, 160 / 170mm |
Fork | RockShox Domain Gold RC |
Shock | RockShox Super Deluxe Select |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | NX Eagle, SRAM |
Motor | Shimano 600W 85Nm mid-drive |
Battery | Shimano 600Wh |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full eONE-SIXTY model range
View ComparisonJun 2024 · Luke Marshall
Merida’s carbon enduro ebike shaves weight to boost the riding experience
Balanced geometry gives excellent handling
The bike hides its modest weight well
Can fit both 29in and 27 5in wheels
Good tyres
Decent value
The 360 wh range extender will be needed for those wanting all day range
Sram db8 brakes are good not great
Shock is a little harsh
Mar 2024 · Richard Owen
Rich Owen tests the fourth incarnation of Merida's alloy e-MTB and it's by far the most capable version yet
Sorted 170mm suspension setup
Well balanced and confidence inducing ride
Tough trail/all-mountain componentry
750Wh battery with optional 360Wh range extender
Lifetime guarantee on the frame
25kg+ weight is up there with the heaviest around
Capable rather than lively
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
Mar 2024 · Danny Milner
With a split range, the latest Merida eOne-Sixty takes a two-pronged approach with the aim of satisfying two distinct e-bike customers. The eOne-Sixty CF goes after the rider seeking less weight and more agility with a smaller battery that’s fully enclosed in the carbon frame, while the eOne-Sixty Lite takes the monster truck approach with big travel and as much range as possible from the 750Wh removable battery and gargantuan 360Wh range extender. Only Merida has inexplicably chosen to make this strategy as confusing as possible to potential customers in the market for the best electric mountain bike. Neither bike has 160mm travel, and the heavy bike is called ‘Lite’. And it’s this, ahem, stout 26.1kg (29kg with range extender!) model that I’m covering here. To find out more about the 22kg eOne-Sixty CF models, read our news story and range overview. Merida eOne-Sixty 875 Need to know Alloy frame with 174mm of travel Shimano EP801 motor powered by 750Wh removable battery Flexstay back end deletes one pivot and simplifies manufacturing Five frame sizes, all with MX wheels (29in front, 27.5in rear) Frame design While the previous eOne-Sixty used a carbon front triangle with a faux-bar back end, vertical shock and rocker link, the new bike mirrors the latest Merida analogue models, with its FAST design. The shock has moved beneath the top tube and the seatstay pivot has been eliminated completely. Instead, Merida has engineered flex into the tubes, regardless of whether they are carbon (on the eOne-Sixty CF) or alloy (on the eOne-Sixty Lite). In that respect, that makes the brand something of an outlier, as most brands restrict their flexstay designs to short-travel XC applications, where the weight savings can be significant. Saving 150g on a 26kg e-bike is neither here nor there, so the explanation here is more about reducing complexity, eliminating components, and reducing costs in manufacturing and assembly. Merida is completely committed to its P-Flex design, and outspoken about its durability, saying that ‘the lack of the rear pivot has no impact on the longevity and robustness of the frame’. And it backs that statement up with a lifetime guarantee and category 4 (enduro/all-mountain) approval. All Merida eOne-Sixty models are built as mullet bikes – something the brand was an early adopter of with the gen 2 bike – but a flip chip at the upper link lets owners run a 29in rear wheel without screwing up the geometry. In that respect it’s more of a compensator than an adjuster, with rear travel being reduced to 160mm with the larger wheel. Motor and battery Merida has also offset the shock to the non-driveside, and rotated the piggyback to the driveside, to increase clearance inside the front triangle. Not only for a bottle and cage, but Merida’s massive 360Wh range extender. A 3kg behemoth of a power pack that, once installed, takes the battery capacity up to 1,110Wh, the weight up to 29kg, and makes the bike look weirdly similar to the original 2017 eOne-Sixty …Continue reading »
• Excellent suspension
• Low standover and wide size range
• Durable Shimano Linkglide drivetrain
• Adjustable dropper post
• Huge potential battery capacity
• Heavy
• Confusing nomenclature
• Uncomfortable saddle
• Front light is pointless
• Hard to see precise battery state with Shimano display
Mar 2024 · Seb Stott
The name is a carry-over from the unassisted One-Sixty, which uses a similar suspension system but ships 29" wheels by default, giving it 160 mm of travel out the box.
Frame | eONE-SIXTY CF4 III, material: carbon, 160mm suspension travel, 29ヤ x 2,6ヤ max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh BB Standard: BSA, 73mm, Threaded |
---|---|
Fork | Domain Gold RC E-MTB, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29x3.0" max wheelsize Travel: 170mm Spring Type: Air |
Shock | Rock Shox Super Deluxe Select, platform Travel: 160mm |
Bottom Bracket | BSA, 73mm, threaded |
Headset | Acros ICR MERIDA INTEGRATED neck w/ Blocklock |
Handlebar | MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB |
Saddle | MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool |
Seatpost | MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost - XL: 230mm travel seatpost Type: Dropper |
Pedals | VP VP-532 |
Rear Derailleur | SRAM NX Eagle |
---|---|
Crank | SRAM Eagle Transmission E-MTB chainring, 36 teeth |
Shifters | Limotech RM10 (For SRAM MMX) |
Cassette | SRAM CS PG1230 EAGLE 11-50T |
Chain | SRAM NX Eagle |
Brakes | SRAM DB8 Stealth / SRAM DB8 stealth, 4 piston Type: Hydraulic Disc |
Rims | MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5" |
---|---|
Spokes | Black stainless |
Front Hub | Novatec SL-ELITE D041SB-B15, 110x15mm width front hub, 32 spoke holes, 6 bolt |
Rear Hub | Novatec SL-TEAM D462SB-S3S-B12-11S, 148x12mm width rear hub, 32 spoke holes, 6 bolt |
Tires | Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip |
Disc Rotors | SRAM HS2, 220mm, 200mm |
Motor | Shimano EP801, 85Nm |
---|---|
Battery | Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated |
Display | Shimano SC-EM800 |
First added July 15
Last updated August 17
