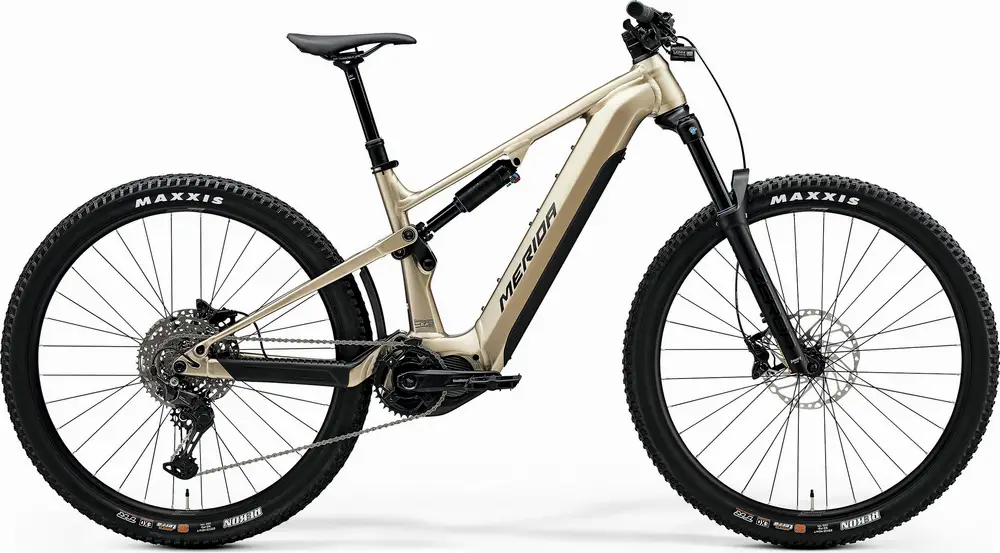

2025 Merida

eONE-FORTY 475

A 29″ aluminum frame full suspension trail e-bike with mid-range components.
Compare the full range

Weight58.4 lbs
FrameAluminum
SuspensionFull, 133 / 150mm
ForkSuntour Zeron
ShockSuntour
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
Battery750Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eONE-FORTY 475
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

eONE-FORTY 475

26 mph

Similar Bikes

Highest gear

(descending)

Reviews
Bikerumor
Merida Revamps Lighter eMTB eOne-Sixty & eOne-Forty with More eBike Range & Travel

Mar 2024 · Cory Benson

3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...

Read Review

EMTB Forums
The new Merida eOne-Sixty is finally here, and the eOne-Forty too

Mar 2024 · Knut Nes

Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...

Read Review

Geometry
Specs
Build
Frame

eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube

BB Standard: BSA, 73mm, Threaded

Fork

SR Sunotur Zeron 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29x2.6" max wheelsize

Travel: 150mm

Spring Type: Air

Shock

SR Suntour Edge Plus, platform

Travel: 133mm

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Handlebar

MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB

Saddle

MERIDA COMP SL, 28% recycled material, V-mount

Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost

Type: Dropper

Pedals

VP VPE-533

Groupset
Rear Derailleur

Shimano Cues U6000, GS

Crank

FSA 1x Steel Chainring, 36 teeth

Shifters

Shimano SL: MT500-IL / Shimano CUES U6000 10

Cassette

Shimano LG400, 11-48 teeth, 10 speed

Chain

Shimano LG500

Brakes

Shimano MT420, 4 piston

Type: Shimano Hydraulic Disc

Wheels
Rims

MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"

Spokes

Black stainless

Front Hub

Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Rekon, 29x2.4", fold, TR 3C EXO MaxxTerra

Disc Rotors

Shimano RT64 / Shimano RTEM600, 203 mm

Electric Components
Motor

Shimano EP801, 85Nm

Battery

Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable

Display

Shimano SC-EN600

Accessories
Fenders

EOF-204
