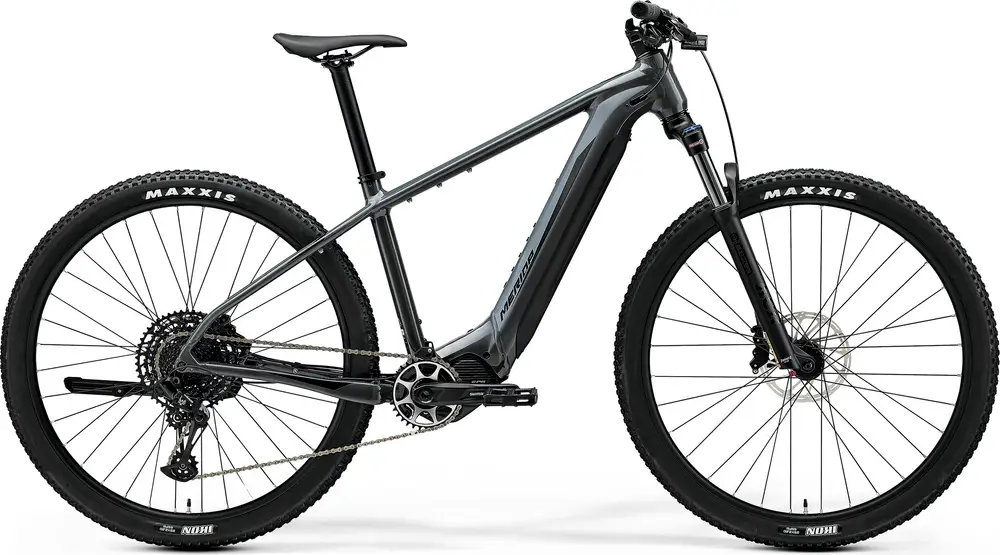

2025 Merida

eBIG.NINE 675

A 29″ aluminum frame hardtail crosscountry e-bike with high-end components.
Compare the full range

Weight52.2 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCR Air
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetNX Eagle
MotorShimano 600W 85Nm mid-drive
Battery750Wh
BrakesSRAM DB8 Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eBIG.NINE 675
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

eBIG.NINE 675

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube

BB Standard: BSA, 73mm, Threaded

Fork

SR Suntour XCR34 LOR DS, Air Boost, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize

Travel: 100mm

Spring Type: Air

Bottom Bracket

BSA, 73mm, threaded

Headset

MERIDA-8157

Handlebar

MERIDA EXPERT eTR, 760mm width, 20mm rise

Saddle

MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

Type: Rigid

Pedals

VP VPE-537

Groupset
Rear Derailleur

SRAM NX Eagle

Crank

Samox EMA04, 34 teeth

Shifters

SRAM NX EAGLE 12

Cassette

SRAM PG-1210 Eagle, 10-50 teeth, 12 speed

Chain

SRAM SX Eagle

Brakes

SRAM DB8, 4 piston

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

MERIDA COMP CC II, 25mm inner width, material: aluminium

Spokes

Black stainless

Front Hub

Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 36 spoke holes, 6 bolt

Rear Hub

Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 36 spoke holes, 6 bolt

Tires

Maxxis Ikon, 29x2.2", kevlar bead

Disc Rotors

SRAM CenterLine, 180mm

Electric Components
Motor

Shimano EP6, 85Nm

Battery

Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable

Display

Shimano SC-EN600

Accessories
Stand

CL-KA98, 29"
