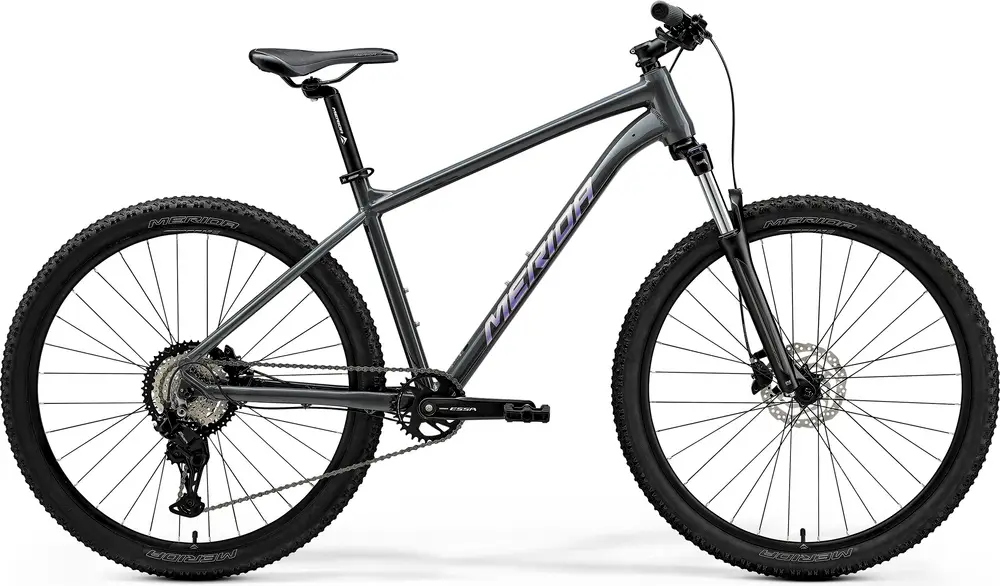

2025 Merida

BIG SEVEN 20

A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range

Manufacturer Price

£700($939)
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCT
Wheels27.5″ Aluminum
Drivetrain1 × 8
GroupsetEssa
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
BIG SEVEN 20
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

24 mph

BIG SEVEN 20

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'8"

MD

5'5" – 5'11"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

BIG.SEVEN TFS IV, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, Threaded

Fork

Suntour XCT30 HLO, Coil, 100mm suspension travel, Lockout, 27.5x2.25" max. wheelsize

Travel: 100mm

Spring Type: Coil

Bottom Bracket

Shimano BB-UN101 73-123

Headset

MERIDA M2345

Stem

MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 72 mm (XS/S), 90 mm (M/L),

Handlebar

MERIDA CC, material: aluminium, 690mm width, 15mm rise

Saddle

MERIDA Sport comfort

Seatpost

MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano ESSA RD-U2000-8, GS

Crank

Shimano ESSA FC-U2001 32 teeth, MAT Aluminium, 170 mm (XS/S), 175 mm (M/L)

Shifters

Shimano ESSA SL-315-8R

Cassette

Shimano CS-HG400-8, 11-45 teeth, 8 speed

Chain

KMC Z8.3

Brakes

Shimano MT200, hydraulic brake

Type: Shimano Hydraulic Disc

Wheels
Rims

MERIDA CC, 17mm inner width, material: aluminium

Front Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tires

Front: MERIDA K1080, 27.5x2.2", wire, Rear: MERIDA K1080, 27.5x2.2", wire

Disc Rotors

Shimano RT10, 160 mm
