Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals

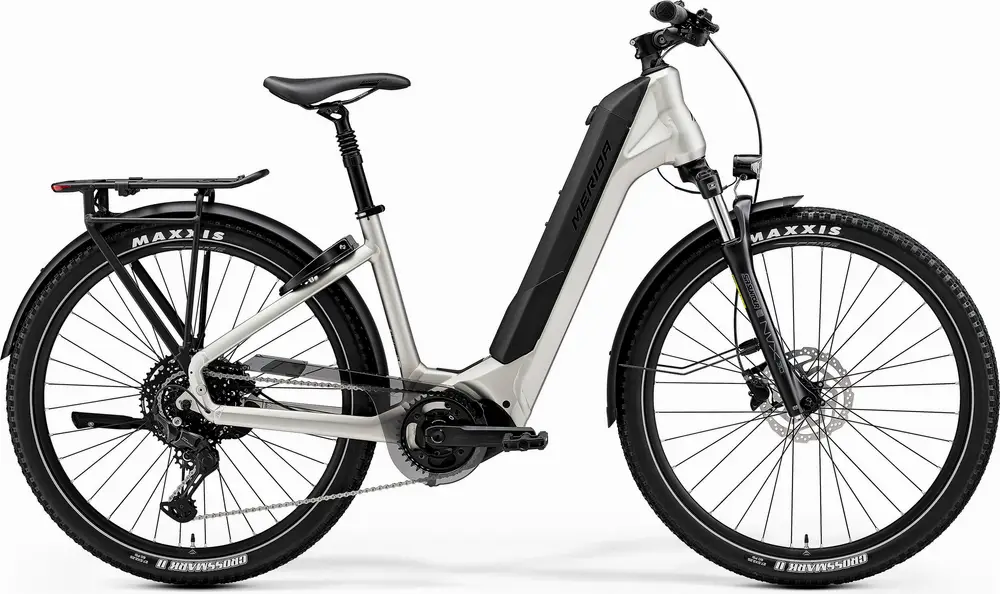

2024 Merida

eSPRESSO CC 500 EQ

A 650b aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.

Manufacturer Price

A$4,899($3,494)
FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour NVX
Wheels650b Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
BatteryShimano 630Wh
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

eSPRESSO CC 500 EQ

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Merida eSpresso CC 675 EQ 2024 review | Urban Electric Bike of the Year contender

May 2024 · Warren Rossiter

Metropolitan cruiser with multi-terrain ambitions

Highs

  • Lots of kit included

  • Smooth and powerful motor

  • Excellent brakes

  • Great contact points

Lows

  • Chunky off road tyres aren t so quick on the road

Read Review

ebiketips
Merida eSPRESSO City 400 EQ

Jul 2023

Verdict: A few small niggles, but a very versatile e-bike that works well everywhere from busy urban streets to relaxing woodland treks

Read Review

Geometry
Specs
Build
Frame

eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal

BB Standard: BSA, Threaded

Fork

SR Suntour NVX30 DS, Coil, 80mm suspension travel, 27,5x2,4" max wheelsize

Travel: 80mm

Spring Type: Coil

Bottom Bracket

BSA, threaded

Headset

MERIDA-8254

Handlebar

MERIDA EXPERT, material: aluminium, 660mm width, 15mm rise

Saddle

MERIDA EXPERT TK II

Seatpost

MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel

Type: Suspension

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano CUES U6000, GS

Crank

Samox NWP203, 38 teeth

Shifters

Shimano CUES U6000

Cassette

Shimano LG300, 11-48 teeth, 10 speed

Chain

Shimano LG500

Chain Guide

Sunnywheel SW-CG-173A

Brakes

Shimano MT200, 2 piston

Type: Shimano Hydraulic Disc

Wheels
Rims

MERIDA COMP TK, 20mm inner width, material: aluminium

Spokes

Black stainless

Front Hub

Shimano QC300, 100x9mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano QC300, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Crossmark II, 27.5x2.25", wire, reflecting line

Disc Rotors

Shimano RT10 / Shimano RTEM300, 180 mm

Electric Components
Motor

Shimano EP6, 85Nm

Battery

Shimano EN806 630 Wh, removeable, No Range Extender compatibility

Display

Shimano SC-EN500

Accessories
Fenders

Sunnywheel SW-FA-311-65(MSB)

Racks

MERIDA MIK HD Carrier with Spring clip & Spanninga rear light

Lock

Abus 4650 XL

Stand

Atranvelo ED-100-PC

Rider Notes
Riders Also Viewed

First added October 14

Last updated October 19

Not listed for 222 days
