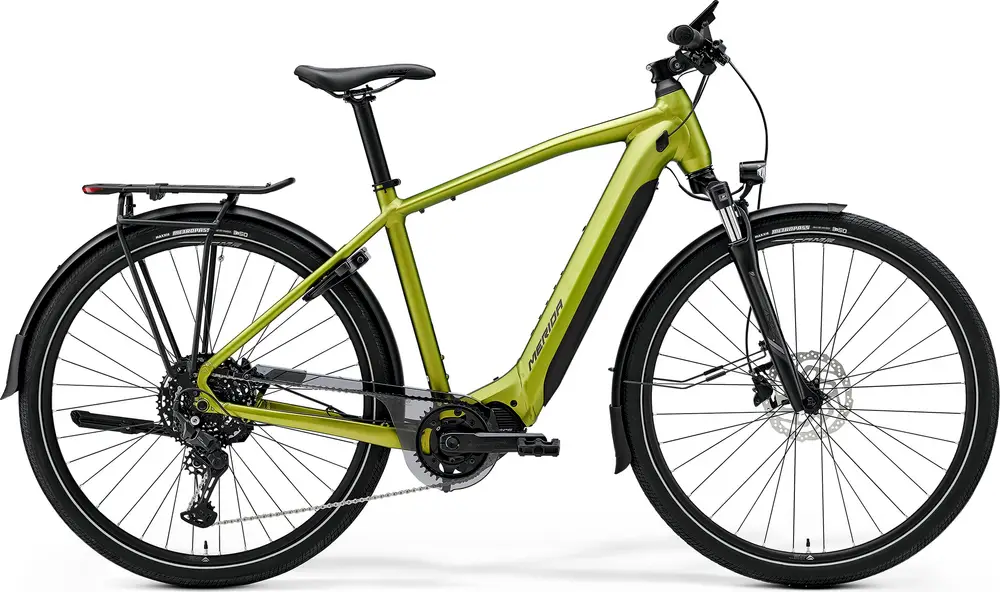

2024 Merida

eSPRESSO 575 EQ

A 700c aluminum frame hybrid e-bike with mid-range components and shimano alivio hydraulic disc brakes.

Manufacturer Price

£3,800($5,097)
Weight57.6 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
Battery750Wh
BrakesShimano Alivio Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

eSPRESSO 575 EQ

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Merida eSpresso CC 675 EQ 2024 review | Urban Electric Bike of the Year contender

May 2024 · Warren Rossiter

Metropolitan cruiser with multi-terrain ambitions

Highs

  • Lots of kit included

  • Smooth and powerful motor

  • Excellent brakes

  • Great contact points

Lows

  • Chunky off road tyres aren t so quick on the road

Read Review

ebiketips
Merida eSPRESSO City 400 EQ

Jul 2023

Verdict: A few small niggles, but a very versatile e-bike that works well everywhere from busy urban streets to relaxing woodland treks

Read Review

Geometry
Specs
Build
Frame

eSPRESSO LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12 mm axle standard, intube

BB Standard: BSA, Threaded

Tire Clearance: 50c

Fork

SR Suntour NEX E25, Coil, 63 mm suspension travel, 700x52C max. wheelsize

Travel: 63mm

Spring Type: Coil

Bottom Bracket

BSA, threaded

Headset

MERIDA 8156

Stem

MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL

Handlebar

MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise

Saddle

MERIDA EXPERT TK II, V-mount

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano CUES U6000, GS

Crank

Samox NWP203, 38 teeth

Shifters

Shimano CUES U6000

Cassette

Shimano LG300, 11-48 teeth, 10 speed

Chain

Shimano LG500

Chain Guide

Sunnywheel SW-CG-173A

Brakes

Shimano MT-200, 2 piston

Type: Shimano Alivio Hydraulic Disc

Wheels
Rims

MERIDA COMP TK, 20 mm inner width, material: aluminium

Spokes

Black stainless

Front Hub

Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock

Tires

Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line

Disc Rotors

Shimano RT10, 180 mm

Electric Components
Motor

Shimano EP6, 85Nm

Battery

Trendpower Internal Battery 750Wh

Display

Shimano SC-EN610

Charger

Simplo EU Charger, 4A

Accessories
Lights

Herrmans H-Black MR4 E / Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier

Fenders

Sunnywheel SW-FA311-60E1 (MSB)

Racks

MERIDA MIK HD Carrier with Spring clip

Lock

Abus 4750 L

Stand

Massload CL-KA98
