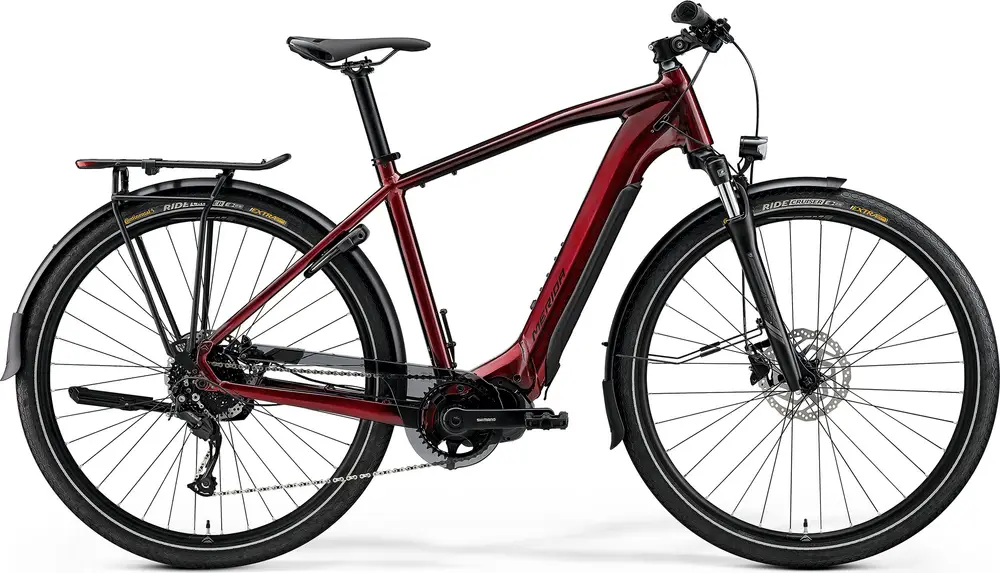

2024 Merida

eSPRESSO 400 EQ

A 700c aluminum frame hybrid e-bike with mid-range components and shimano hydraulic disc brakes.

Manufacturer Price

£3,000($4,024)
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetAlivio
MotorShimano 250W 60Nm mid-drive
BatteryShimano 504Wh
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

eSPRESSO 400 EQ

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Merida eSpresso CC 675 EQ 2024 review | Urban Electric Bike of the Year contender

May 2024 · Warren Rossiter

Metropolitan cruiser with multi-terrain ambitions

Highs

  • Lots of kit included

  • Smooth and powerful motor

  • Excellent brakes

  • Great contact points

Lows

  • Chunky off road tyres aren t so quick on the road

Read Review

ebiketips
Merida eSPRESSO City 400 EQ

Jul 2023

Verdict: A few small niggles, but a very versatile e-bike that works well everywhere from busy urban streets to relaxing woodland treks

Read Review

Geometry
Specs
Build
Frame

eSPRESSO LITE II, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, MUK 37 Hanger

BB Standard: BSA, Threaded

Tire Clearance: 50c

Fork

SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize

Travel: 63mm

Spring Type: Coil

Bottom Bracket

BSA, threaded

Headset

MERIDA 2346

Stem

MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm-XS/S/M, 110 mm-L/XL

Handlebar

MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise

Saddle

MERIDA EXPERT TK, V-mount

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano ALIVIO M3100, SGS

Crank

Shimano CRE61, 38 teeth

Shifters

Shimano Alivio

Cassette

Shimano HG200, 11-36 teeth, 9 speed

Chain

KMC e9S

Brakes

Shimano MT200, 2 piston

Type: Shimano Hydraulic Disc

Wheels
Rims

MERIDA COMP TK, 20mm inner width, material: aluminium

Front Hub

Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock

Rear Hub

Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock

Tires

Front: Continental Ride Cruiser, 622-50, wire, reflecting line, Rear: Continental Ride Cruiser, 622-50, wire, reflecting line

Disc Rotors

Shimano RT10, 180 mm

Electric Components
Motor

Shimano E6100, 60Nm

Battery

Shimano E8035, 504Wh

Display

Shimano SC-E5000A

Charger

Shimano EC-E6002, 2A charging current

Accessories
Lights

Herrmans H-Black MR4 E / Spanninga Commuter Glow XE, STVZO, STVZO, integrated in MERIDA MIK HD carrier

Fenders

Sunnywheel SW-FA311-60E1 (MSB)

Racks

MERIDA MIK HD, Spring clip, Spanninga rear light

Lock

Abus 5650 LH-3 lock

Stand

Massload CL-KA98
