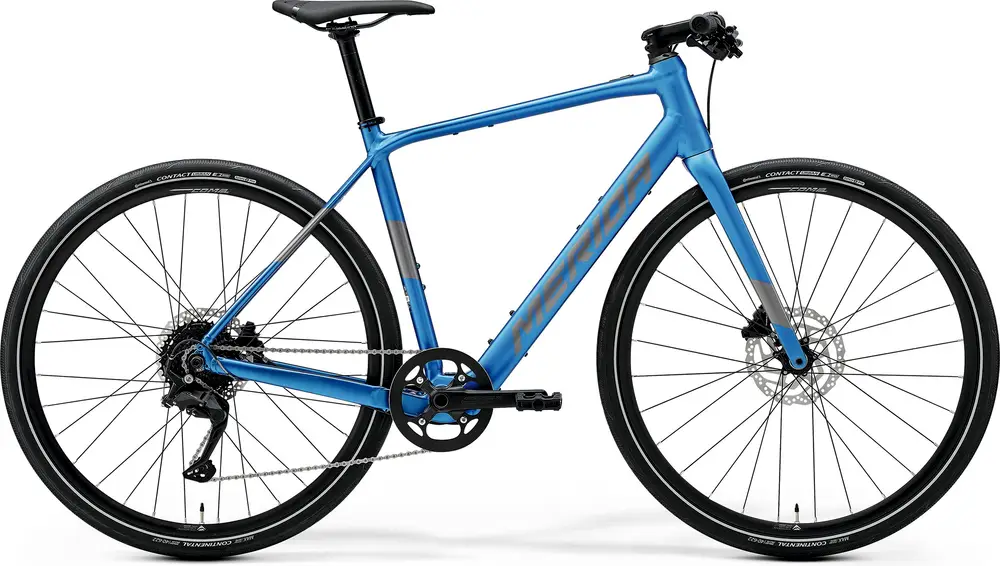

2024 Merida

eSPEEDER 200

A 700c aluminum frame fitness e-bike with mid-range components and shimano alivio hydraulic disc brakes.
Compare the full range

Manufacturer Price

£2,600($3,487)
Weight28.0 lbs
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetCUES
MotorMAHLE 40Nm hub-drive
BatteryMAHLE 250Wh
BrakesShimano Alivio Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
eSPEEDER 200
Other Fitness bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

eSPEEDER 200

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eSPEEDER LITE II, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9 mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 100mm, Threaded

Tire Clearance: 45c

Fork

MERIDA Mission CX, carbon, max. 700x40C (with fender) wheelsize

Bottom Bracket

BSA, 100mm, threaded

Headset

MERIDA 8158

Stem

MERIDA EXPERT IR II, material: aluminium, 31.8 mm diameter, 5° stem angle, 80 mm- XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL

Handlebar

MERIDA EXPERT CC, material: aluminium, 620 mm width, Flat

Saddle

MERIDA COMP SL, V-mount

Seatpost

MERIDA EXPERT, material: aluminium, 30.9 mm diameter, 0 mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano CUES U3020, SGS

Crank

MERIDA COMP TK, 42 teeth, 165 mm-XS, 170 mm-S/M/L/XL

Shifters

Shimano CUES U4000

Cassette

Shimano LG300, 11-36 teeth, 9 speed

Chain

Shimano LG500

Brakes

Shimano MT-200 / UR300, 2 piston, Shimano MT-200 / UR300, 2 piston

Type: Shimano Alivio Hydraulic Disc

Wheels
Rims

MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium

Spokes

Black stainless

Front Hub

VP CLK170F, 100x12 mm width front hub, 28 spoke holes, Centerlock

Rear Hub

VP CLK170F, 100x12 mm width front hub, 28 spoke holes, Centerlock

Tires

Front: Continental Contact Urban, 700Cx40, wire, Rear: Continental Contact Urban, 700Cx40, wire

Disc Rotors

Shimano RT10, 180 mm

Electric Components
Motor

MAHLE X35+ Hub Engine, 40Nm

Battery

Mahle B1-D 250Wh

Charger

MAHLE CHARGER-C, 2A charging current

Accessories
Lights

Chance Good 119PG / Chance Good 404RG
