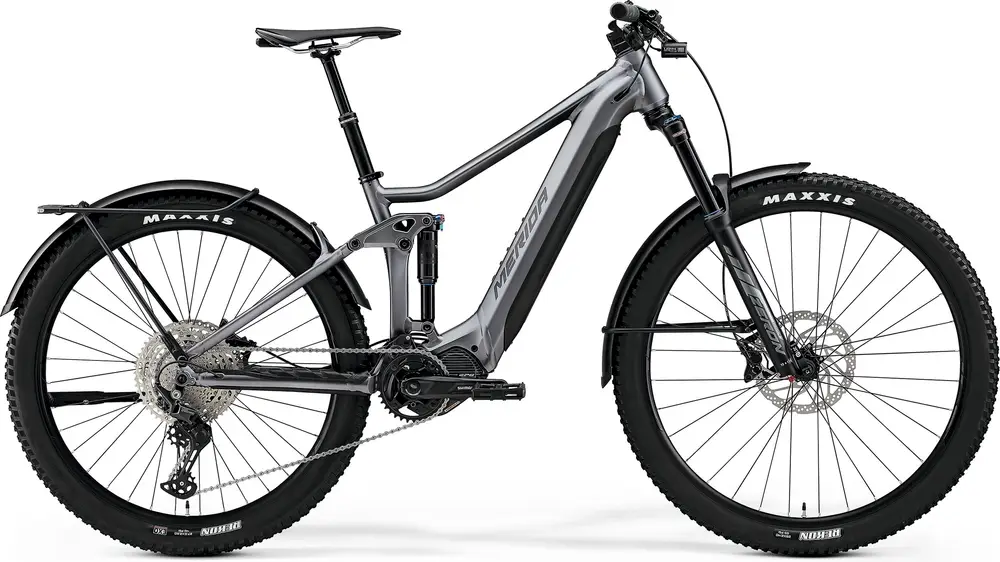

2024 Merida
eONE-FORTY EQ
A 29″ / 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
NZ$8,499($5,335)| Frame | Aluminum |
|---|---|
| Suspension | Full, 133 / 140mm |
| Fork | Suntour Zeron |
| Shock | Suntour |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore, Shimano |
| Motor | Shimano 85Nm mid-drive |
| Battery | Shimano 630Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full eONE-FORTY model range
View Comparison
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
Sep 2021 · Rudolf Fischer
With the eONE-FORTY EQ, MERIDA enter our E-trekking bike group test with a thoroughbred eMTB with a Shimano EP8 motor and trekking equipment.
Top riding fun and precise handling on paths and trails
Tidy cockpit
Multi-tool under the saddle
No connectivity
Demanding handling
| Frame | eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" without fender max./ 27.5"x2.6" with fender max. wheelsize, 148x12mm axle standard, intube BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | SR Suntour ZERON 35-Boost LOR, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.4" max wheelsize Travel: 140mm Spring Type: Air |
| Shock | SR Suntour EDGE, lockout Travel: 133mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | MERIDA 8152 |
| Handlebar | MERIDA EXPERT eTR, 780mm width, 20mm rise |
| Saddle | MERIDA EXPERT CC, V-mount, incl. MERIDA minitool |
| Seatpost | MERIDA COMP TR, 30.9mm diameter, 0mm setback, S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost Type: Dropper |
| Pedals | VP VPE-537 |
| Rear Derailleur | Shimano Deore RDM5100 11 |
|---|---|
| Crank | Shimano CRE70-B, 34 teeth |
| Shifters | Shimano SL -MT500-IL |
| Cassette | Shimano M5100, 11-51 teeth, 11 speed |
| Chain | KMC e11S EPT |
| Brakes | Shimano M4100, 4 piston Type: Hydraulic Disc |
| Rims | MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes | Black stainless |
| Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub | Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Maxxis Rekon, 29x2.4", wire, DUAL |
| Motor | Shimano EP8, 85Nm |
|---|---|
| Battery | Shimano E8036 630Wh / Shimano E8035 504Wh for S only |
| Display | Shimano SC-E5003A |
| Fenders | Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail |
|---|---|
| Racks | MERIDA MA006 |
| Stand | Atranvelo ED-100-PC |
Last updated June 24
