Today’s Deals2024 Merida

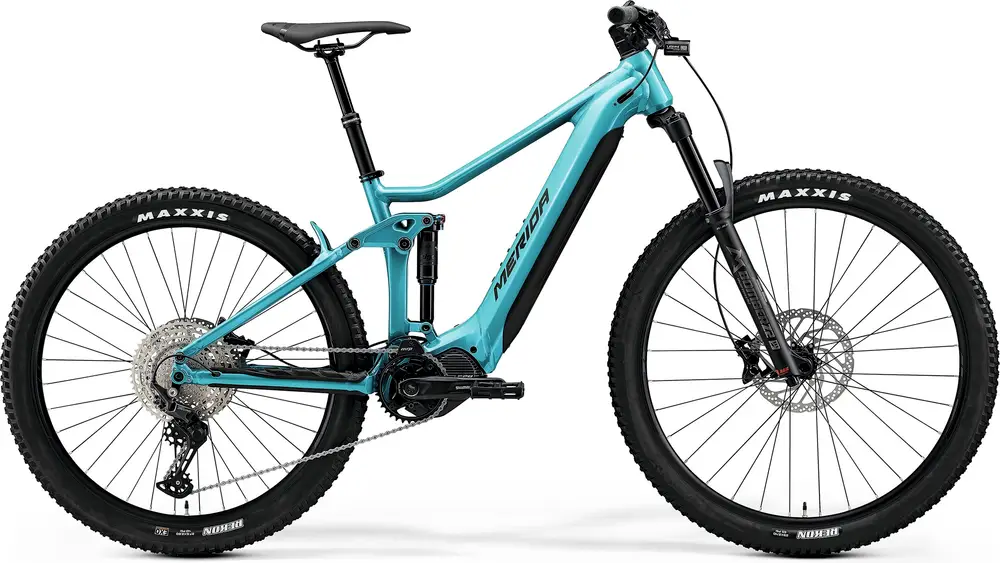

eONE-FORTY 500 (EP6)
A 29″ / 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
£4,650($6,239)| Frame | Aluminum |
|---|---|
| Suspension | Full, 133 / 140mm |
| Fork | Suntour XCR Air |
| Shock | Suntour |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Shimano 600W 85Nm mid-drive |
| Battery | 750Wh |
| Brakes | Tektro Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full eONE-FORTY model range
View Comparison
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
Sep 2021 · Rudolf Fischer
With the eONE-FORTY EQ, MERIDA enter our E-trekking bike group test with a thoroughbred eMTB with a Shimano EP8 motor and trekking equipment.
Top riding fun and precise handling on paths and trails
Tidy cockpit
Multi-tool under the saddle
No connectivity
Demanding handling
| Frame | eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Suntour XCR34 LOR DS, Air Boost, 140mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize Travel: 140mm Spring Type: Air |
| Shock | SUNTOUR RS-EDGE-TR-LO-R8-M6, lockout Travel: 133mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | MERIDA-8152 / MERIDA-8157 for M size |
| Stem | MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 50 mm all sizes |
| Handlebar | MERIDA EXPERT eTR, 780mm width, 20mm rise |
| Saddle | MERIDA EXPERT CC, V-mount |
| Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback Type: Rigid |
| Pedals | VP VPE-537 |
| Rear Derailleur | Shimano Deore M5120, SGS |
|---|---|
| Crank | Shimano CRE70-B, 34 teeth |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano M4100, 11-46 teeth, 10 speed |
| Chain | KMC e10s |
| Brakes | TEKTRO HD-M745, 4 piston Type: Tektro Hydraulic Disc |
| Rims | MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Rear Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Front: MAXXIS REKON, 29x2.4", wire, DUAL, Rear: MAXXIS REKON, 27.5x2.6", wire, EXO |
| Disc Rotors | TR-25, 203 mm, 180 mm |
| Motor | Shimano EP6, 85Nm |
|---|---|
| Battery | Trendpower Internal Battery, 750Wh |
| Display | Shimano SC-E5003 |
| Charger | Trendpower EU Charger, 4A |
| Lights | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / Herrmans H-Cargo integrated in MERIDA MIK carrier |
|---|---|
| Fenders | Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail |
| Racks | MERIDA MA006 |
| Stand | Atranvelo ED-100-PC |
