Today’s Deals2024 Merida

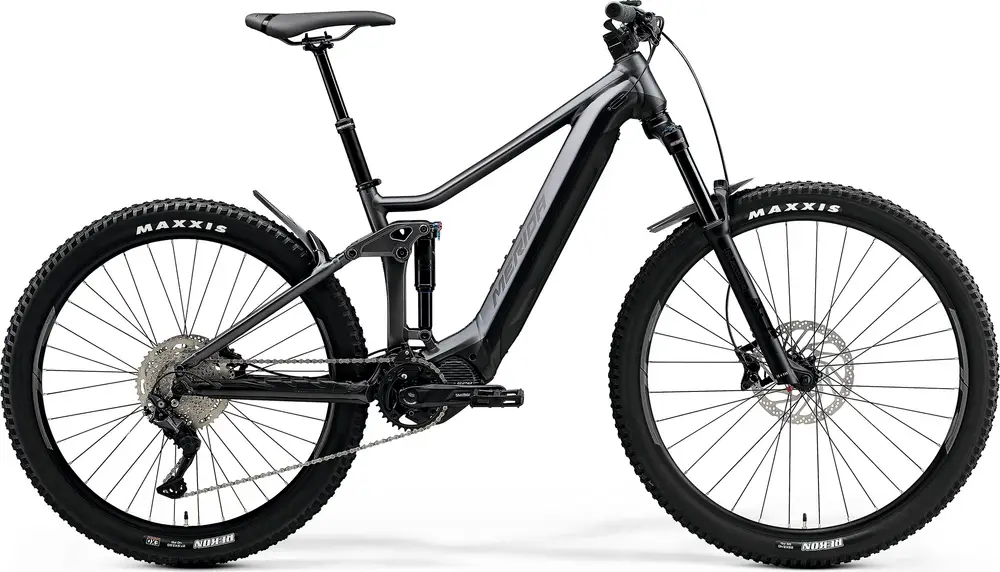

eONE-FORTY 400 (EP6)
A 29″ / 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
£4,150($5,568)| Frame | Aluminum |
|---|---|
| Suspension | Full, 133 / 140mm |
| Fork | Suntour XCR Air |
| Shock | Suntour |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Shimano 600W 85Nm mid-drive |
| Battery | Shimano 630Wh |
| Brakes | Shimano Deore Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full eONE-FORTY model range
View Comparison5'4" – 5'10"
5'8" – 6'3"
6'0" – 6'6"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
Sep 2021 · Rudolf Fischer
With the eONE-FORTY EQ, MERIDA enter our E-trekking bike group test with a thoroughbred eMTB with a Shimano EP8 motor and trekking equipment.
Top riding fun and precise handling on paths and trails
Tidy cockpit
Multi-tool under the saddle
No connectivity
Demanding handling
| Frame | eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Suntour XCR34 LOR DS, Air Boost, 140mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize Travel: 140mm Spring Type: Air |
| Shock | SUNTOUR RS-EDGE-TR-LO-R8-M6, lockout Travel: 133mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | MERIDA-8152 |
| Stem | MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 50 mm all sizes |
| Handlebar | MERIDA EXPERT eTR, 780mm width, 20mm rise |
| Saddle | MERIDA COMP SL, V-mount |
| Seatpost | MERIDA COMP TR, 30.9mm diameter, 0mm setback, M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost Type: Dropper |
| Pedals | VP VPE-537 |
| Rear Derailleur | Shimano Deore RDM5120 10 |
|---|---|
| Crank | Shimano CRE70-B, 34 teeth |
| Shifters | Shimano SL -MT500-IL / Shimano Deore M4100 |
| Cassette | Shimano M4100, 11-46 teeth, 10 speed |
| Chain | KMC e10s |
| Brakes | Shimano M42040 / Shimano M4100, 4 piston, 2 piston Type: Shimano Deore Hydraulic Disc |
| Rims | MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Rear Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Front: MAXXIS REKON, 29x2.4", wire, DUAL, Rear: MAXXIS REKON, 27.5x2.6", wire, EXO |
| Disc Rotors | Shimano RT30 / Shimano RTEM300, 203 mm, 180 mm |
| Motor | Shimano EP6, 85Nm |
|---|---|
| Battery | Shimano EN806, 630Wh Shimano EN805 504Wh for XS only |
| Display | Shimano SC-EN600 |
| Charger | Shimano EC-E6002, 2A charging current |
| Lights | CG-119PG-BLACK(1) / CG-404RG-BLK |
|---|---|
| Fenders | C093-02F + C093-02R |
