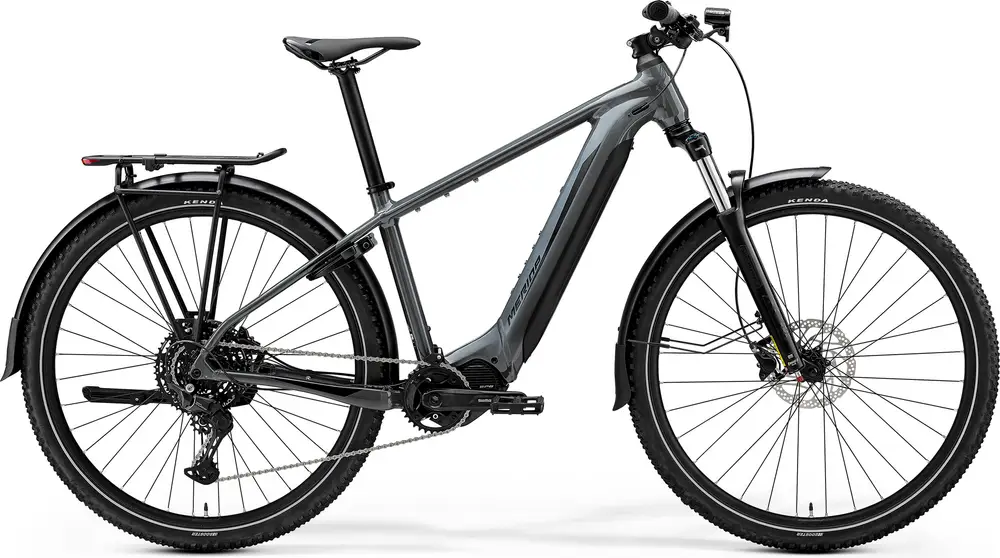

2024 Merida

eBIG.NINE 400 EQ

A 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range

Manufacturer Price

A$4,799($3,422)
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
BatteryShimano 630Wh
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eBIG.NINE 400 EQ
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

eBIG.NINE 400 EQ

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full eBIG.NINE model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube

BB Standard: BSA, 73mm, Threaded

Fork

SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize

Travel: 100mm

Spring Type: Coil

Bottom Bracket

BSA, 73mm, threaded

Headset

MERIDA-8155 (for the steerer 1-1/8"~1.5")

Handlebar

MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise

Saddle

MERIDA EXPERT TK, V-mount

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback

Type: Rigid

Pedals

VP VPE-537

Groupset
Rear Derailleur

Shimano Cues U4000, GS

Crank

Shimano CRE70-B, 34 teeth

Shifters

Shimano CUES U6000

Cassette

Shimano LG300, 11-48 teeth, 10 speed

Chain

Shimano LG500

Brakes

Shimano MT200, 2 piston

Type: Shimano Hydraulic Disc

Wheels
Rims

MERIDA COMP CC II, 25mm inner width, material: aluminium

Spokes

Black stainless

Front Hub

Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-HM-B, 148x12mm width rear hub, 36 spoke holes, Centerlock

Tires

Kenda Booster, 29x2.2", wire

Disc Rotors

Shimano RT30 / Shimano RTEM300, 180 mm

Electric Components
Motor

Shimano EP6, 85Nm

Battery

Shimano EN806 630 Wh, removeable, No Range Extender compatibility

Display

Shimano SC-EN500

Accessories
Fenders

Sunnywheel SW-FA311-65A/ SW-FA311-65E1

Racks

MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE

Lock

Abus 4650 L

Stand

CL-KA98, 29"
