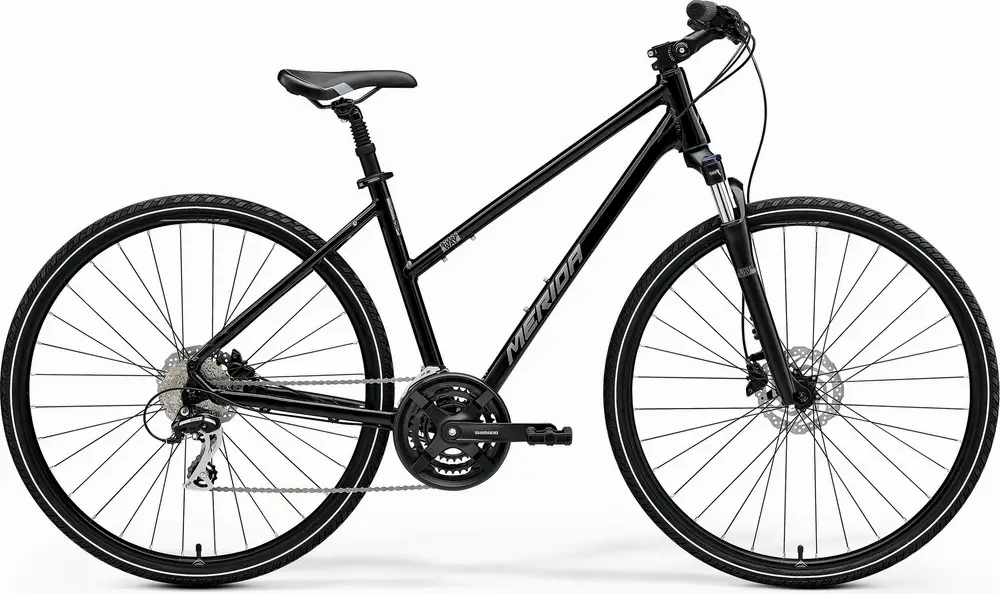

2024 Merida

CROSSWAY L 20-D

A 700c aluminum frame hybrid bike with mid-range components and mechanical disc brakes.

Manufacturer Price

£685($922)
Weight30.6 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain3 × 8
GroupsetTourney, Acera
BrakesMechanical Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

CROSSWAY L 20-D

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'8"

MD

5'5" – 5'11"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
road.cc
Merida Crossway 300 2023

Mar 2023 · John Stevenson

Dependable, friendly hybrid with comfort-boosting features and huge gear range, if a bit heavy

Highs

  • Comfy thanks to suspension post & fork

  • Huge gear range

  • Decent hydraulic disc brakes

  • Great colour

Lows

  • No rack, mudguards etc

  • Triple chainset could be confusing

  • Heavy

Read Review

Geometry
Specs
Build
Frame

CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, MUK 5 Hanger

BB Standard: BSA, Threaded

Tire Clearance: 50c

Fork

Suntour NEX HLO, Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize

Travel: 63mm

Spring Type: Coil

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Headset

FSA TH888/NO.10

Stem

MERIDA TK, material: aluminium, 25.4mm diameter, adjustable, 100 mm all sizes

Handlebar

MERIDA CC, material: aluminium, 660mm width, 25mm rise

Saddle

MERIDA Cross Sport

Seatpost

MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel

Type: Suspension

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano RD-M360

Front Derailleur

Shimano FD-TY710

Crank

Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL

Shifters

Shimano ST-EF505

Cassette

Sunrace CSM668, 11-32 teeth, 8 speed

Chain

Sunrace M84

Brakes

Power DS100

Type: Mechanical Disc

Wheels
Rims

MERIDA CC, 17mm inner width, material: aluminium

Spokes

Black steel

Front Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tires

Front: MERIDA K1171, 700x40C, wire, Rear: MERIDA K1171, 700x40C, wire

Disc Rotors

Shimano RT10, 160 mm
