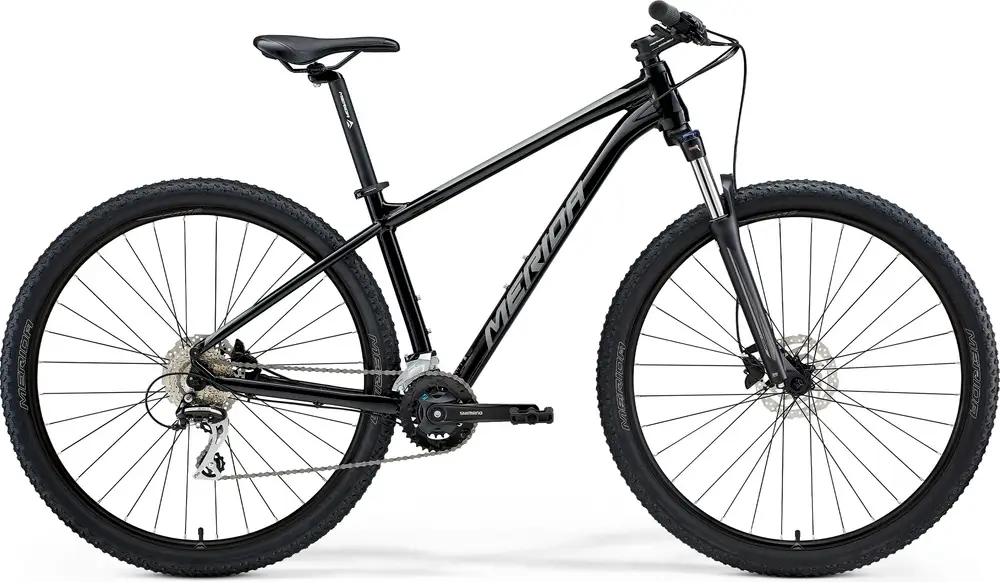

2024 Merida

BIG NINE 20

A 29″ aluminum frame hardtail crosscountry bike with modest components.
Compare the full range

Manufacturer Price

£700($939)
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCT
Wheels29″ Aluminum
Drivetrain2 × 8
GroupsetAcera, microSHIFT Mezzo
BrakesHydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
BIG NINE 20
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

BIG NINE 20

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full BIG NINE model range

View Comparison
Geometry
Specs
Build
Frame

BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, Threaded

Fork

SR Suntour XCT30 HLO, Coil, 100mm suspension travel, lockout

Travel: 100mm

Spring Type: Coil

Bottom Bracket

FSA TH-7420ST-W, CARTRIDGE BEARING

Headset

MERIDA M2345

Stem

MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL

Handlebar

MERIDA CC, material: aluminium, 690mm width, 15mm rise

Saddle

MERIDA SPORT COMFORT

Seatpost

MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano RD-M360

Front Derailleur

Shimano FD-M315-TS

Crank

Shimano FC-M315-2, 36-22, 170 mm-S, 175 mm-M/XXL

Shifters

Micro Shift TS39-2L / Micro Shift TS39-8R

Cassette

SUNRACE CSM668, 11-32 teeth, 8 speed

Chain

SUNRACE M84

Brakes

Power DS100, 2 piston, hydraulic disc brake

Type: Hydraulic Disc

Wheels
Rims

MERIDA CC, 17mm inner width, material: aluminium

Front Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tires

Front: MERIDA K1080, 29x2.2", wire, Rear: MERIDA K1080, 29x2.2", wire

Disc Rotors

Shimano RT10, 160 mm
