Today’s Deals2023 Merida

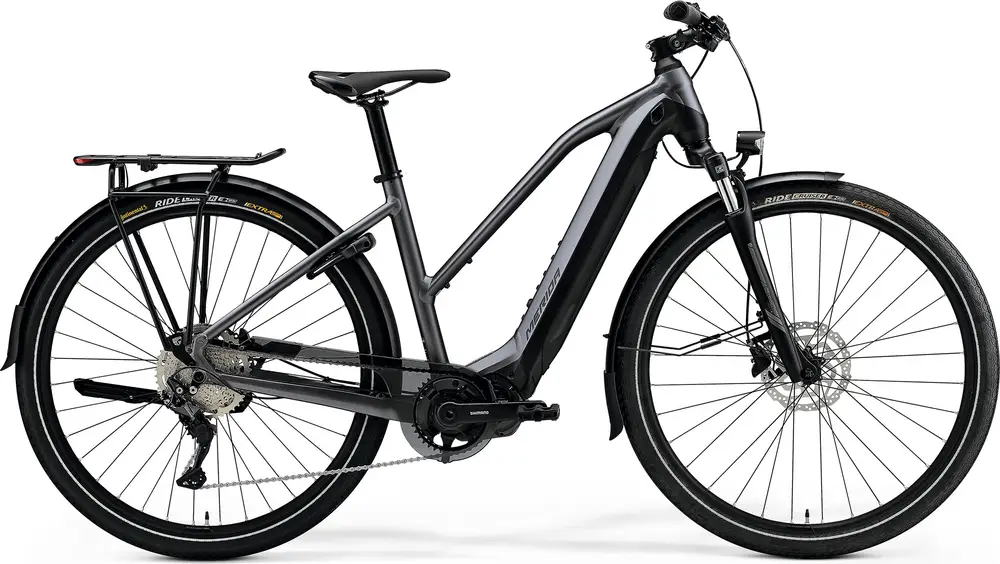

eSPRESSO L 575 EQ
A 700c aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.
| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 63mm |
| Fork | Suntour NEX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Shimano 250W 60Nm mid-drive |
| Battery | 750Wh |
| Brakes | Shimano Hydraulic Disc |
4'11" – 5'5"
5'2" – 5'7"
5'4" – 5'10"
5'7" – 6'1"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
May 2024 · Warren Rossiter
Metropolitan cruiser with multi-terrain ambitions
Lots of kit included
Smooth and powerful motor
Excellent brakes
Great contact points
Chunky off road tyres aren t so quick on the road
Jul 2023
Verdict: A few small niggles, but a very versatile e-bike that works well everywhere from busy urban streets to relaxing woodland treks
| Frame | eSPRESSO L LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube BB Standard: BSA, Threaded Tire Clearance: 50c |
|---|---|
| Fork | SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize Travel: 63mm Spring Type: Coil |
| Bottom Bracket | BSA, threaded |
| Headset | MERIDA 8156 |
| Handlebar | MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise |
| Saddle | MERIDA EXPERT TK, V-mount |
| Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback Type: Rigid |
| Pedals | VP VPE-891 |
| Rear Derailleur | Shimano Deore M5120, SGS |
|---|---|
| Crank | Shimano CRE61, 38 teeth |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano M4100, 11-46 teeth, 10 speed |
| Chain | KMC e10S EPT |
| Chain Guide | Sunnywheel SW-CG-173A |
| Brakes | Shimano MT200, 2 piston Type: Shimano Hydraulic Disc |
| Rims | MERIDA COMP TK, 20mm inner width, material: aluminium |
|---|---|
| Spokes | Black stainless |
| Front Hub | Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock |
| Rear Hub | Shimano TX505 / Shimano MT400, 100x9mm width front hub, 32 spoke holes, Centerlock, 142x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Continental Ride Cruiser, 622-50, wire, reflecting line |
| Disc Rotors | Shimano RT10, 180 mm |
| Motor | Shimano E6100, 60Nm |
|---|---|
| Battery | Simplo Internal Battery, 750Wh |
| Display | Shimano SC-E5000A |
| Fenders | Sunnywheel SW-FA311-60E1 (MSB) |
|---|---|
| Racks | MERIDA MIK HD, Spring clip, Spanninga rear light |
| Lock | Abus 5650 LH-3 lock |
| Stand | Massload CL-KA98 |
