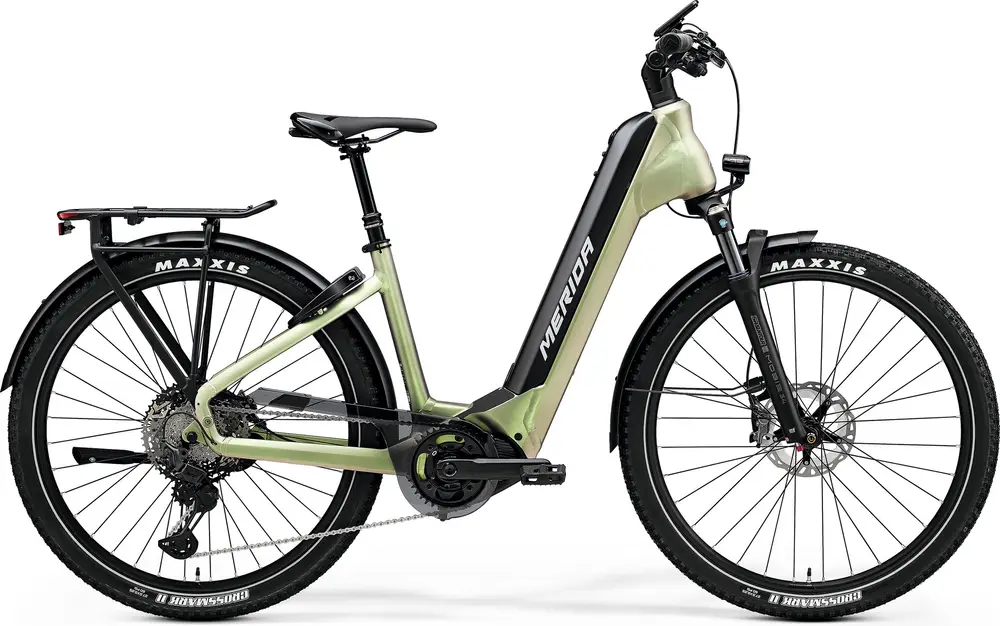

2023 Merida

eSPRESSO CC 975 EQ

A 650b aluminum frame hybrid e-bike with high-end components and shimano xt hydraulic disc brakes.

FrameAluminum
SuspensionHardtail, 80mm
ForkSuntour MOBIE
Wheels650b Aluminum
Drivetrain1 × 11
GroupsetXT
MotorShimano 85Nm mid-drive
Battery750Wh
BrakesShimano XT Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

eSPRESSO CC 975 EQ

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Merida eSpresso CC 675 EQ 2024 review | Urban Electric Bike of the Year contender

May 2024 · Warren Rossiter

Metropolitan cruiser with multi-terrain ambitions

Highs

  • Lots of kit included

  • Smooth and powerful motor

  • Excellent brakes

  • Great contact points

Lows

  • Chunky off road tyres aren t so quick on the road

Read Review

ebiketips
Merida eSPRESSO City 400 EQ

Jul 2023

Verdict: A few small niggles, but a very versatile e-bike that works well everywhere from busy urban streets to relaxing woodland treks

Read Review

Geometry
Specs
Build
Frame

eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal

BB Standard: BSA, Threaded

Fork

SR Suntour Mobie 34 2CR, Air, 80mm suspension travel, 27,5x2,4" max wheelsize

Travel: 80mm

Spring Type: Air

Bottom Bracket

BSA, threaded

Headset

Acros Trekking

Handlebar

MERIDA EXPERT TK, material: aluminium, 680mm width, 15mm rise

Saddle

MERIDA EXPERT TK, V-mount

Seatpost

MERIDA TEAM TK, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 120mm travel seatpost, XS/S 40mm seatpost suspension travel - M/L/XL 50mm seatpost suspension travel

Type: Suspension

Pedals

VP VPE-889

Groupset
Rear Derailleur

Shimano XT M8130, SGS

Crank

Samox NWP203, 38 teeth

Shifters

Shimano XT M8130

Cassette

Shimano LG600, 11-50 teeth, 11 speed

Chain

Shimano LG500

Chain Guide

Sunnywheel SW-CG-173A

Brakes

Shimano XT, 4 piston, 2 piston

Type: Shimano XT Hydraulic Disc

Wheels
Rims

MERIDA COMP TK, 20mm inner width, material: aluminium

Spokes

Black stainless

Front Hub

Shimano XT M8110 / Shimano UR600, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36SPH, Centerlock

Rear Hub

Shimano XT M8110 / Shimano UR600, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36SPH, Centerlock

Tires

Maxxis Crossmark II, 27.5x2.25", wire, reflecting line

Disc Rotors

Shimano MT800 / Shimano RTEM810, 180 mm

Electric Components
Motor

Shimano EP8, 85Nm

Battery

Simplo Internal Battery, 750Wh

Display

Shimano SC-E6100

Accessories
Fenders

Sunnywheel SW-FA-311-65A(MSB)

Racks

MERIDA MIK HD, Spring clip, Spanninga rear light

Lock

Abus 4650 XL

Stand

Atranvelo 1219-PC-7
