Today’s Deals2023 Merida

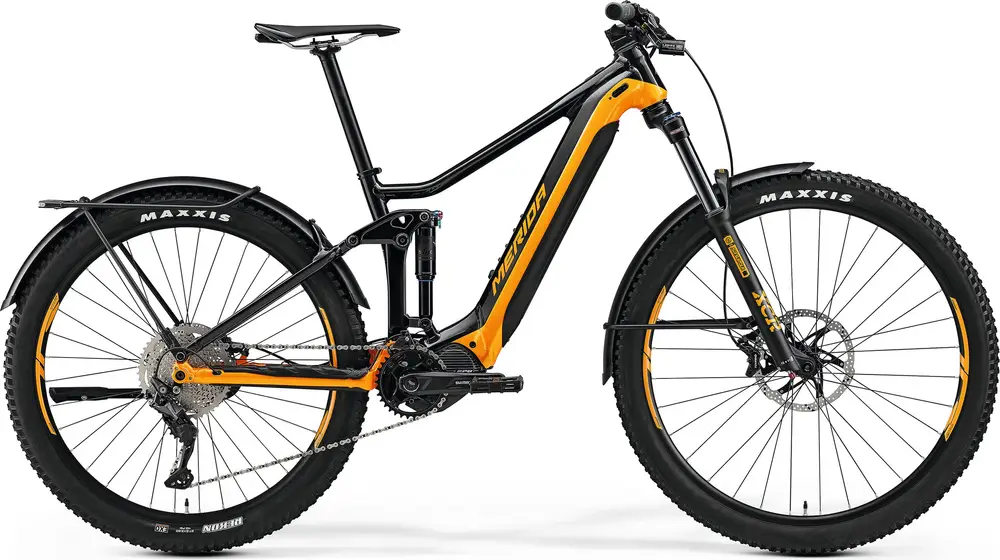

eONE-FORTY 475 EQ
A 29″ / 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
| Frame | Aluminum |
|---|---|
| Suspension | Full, 133 / 140mm |
| Fork | Suntour XCR Air |
| Shock | Suntour |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Shimano 85Nm mid-drive |
| Battery | 750Wh |
| Brakes | Tektro Hydraulic Disc |
Mar 2024 · Cory Benson
3 all-new Merida eOne-Sixty & eOne-Forty eMTBs reshape mountain ebikes with lighter weight, bigger range & more travel in carbon or alloy...
Mar 2024 · Knut Nes
Launched back in 2017, the original Merida eOne-Sixty was a revolution to me. New, compact motor designs allowed manufacturers such as Merida to design a frame with sensible chainstay length and bottom bracket drop. This did wonders for handling...
Sep 2021 · Rudolf Fischer
With the eONE-FORTY EQ, MERIDA enter our E-trekking bike group test with a thoroughbred eMTB with a Shimano EP8 motor and trekking equipment.
Top riding fun and precise handling on paths and trails
Tidy cockpit
Multi-tool under the saddle
No connectivity
Demanding handling
May 2020
Merida's eOne-Forty 8000 is a well-made and decently priced e-MTB that offers a sorted Shimano drive system nestled sleekly in a carbon chassis. It rides and handles well, but most riders would probably be just as well off with it's bigger brother in the form of the eOne-Sixty, which is much more capable, scarcely heavier and just as good value. Big Read: Racing e-bikes at the EX Enduro; how much difference does a motor make?
Apr 2020 · Luke Marshall
The eONE-FORTY is a trail-friendly and capable ebike that prefers the smooth to the rough
The geometry puts you in a comfortable position for extended pedalling
Even with its ebike weight you can still be relatively nimble on the trails
The suspension travel will hold you back when the terrain gets rowdier
Its looks and the Thermo Gate have divided team opinion
Jan 2020 · Jamie Darlow
The new Merida eOne-Forty 9000 is the little brother in Merida’s new range of e-bikes with their battery hidden away inside the down tube.
Fun and exciting ride, easy to play with on the trail, proven Shimano motor, and boasting loads of smart features.
Too flexy when trails get faster and firmer, geometry is needlessly conservative. Too pricey.
| Frame | eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | SR Suntour XCR34 LOR DS, Air Boost, 140mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize Travel: 140mm Spring Type: Air |
| Shock | SR Suntour EDGE, lockout Travel: 133mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | MERIDA 8152 |
| Handlebar | MERIDA EXPERT eTR, 780mm width, 20mm rise |
| Saddle | MERIDA EXPERT CC, V-mount |
| Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback Type: Rigid |
| Pedals | VP VPE-537 |
| Rear Derailleur | Shimano Deore M5120, SGS |
|---|---|
| Crank | Shimano CRE70-B, 34 teeth |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano M4100, 11-46 teeth, 10 speed |
| Chain | KMC e10s |
| Brakes | Tektro HD-M745, 4 piston Type: Tektro Hydraulic Disc |
| Rims | MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes | Black stainless |
| Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Rear Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Maxxis Rekon, 29x2.4", wire, DUAL |
| Disc Rotors | Tektro TR-25, 203 mm, 180 mm |
| Motor | Shimano EP8, 85Nm |
|---|---|
| Battery | Simplo Internal Battery, 750Wh |
| Display | Shimano SC-E5003 |
| Fenders | Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail |
|---|---|
| Racks | MERIDA MA006 |
| Stand | Atranvelo ED-100-PC |
