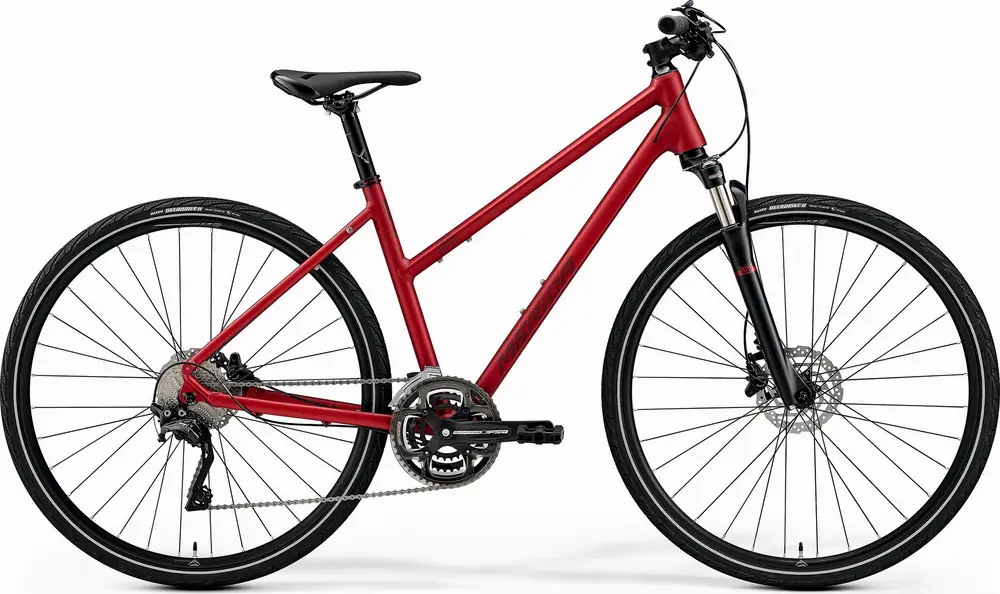

2023 Merida

CROSSWAY L 500

A 700c aluminum frame hybrid bike with upper mid-range components and shimano hydraulic disc brakes.

Manufacturer Price

A$1,499($1,072)
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels700c Aluminum
Drivetrain3 × 10
GroupsetXT, Deore
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

CROSSWAY L 500

35 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Reviews
road.cc
Merida Crossway 300 2023

Mar 2023 · John Stevenson

Dependable, friendly hybrid with comfort-boosting features and huge gear range, if a bit heavy

Highs

  • Comfy thanks to suspension post & fork

  • Huge gear range

  • Decent hydraulic disc brakes

  • Great colour

Lows

  • No rack, mudguards etc

  • Triple chainset could be confusing

  • Heavy

Read Review

Geometry
Specs
Build
Frame

CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, Threaded

Tire Clearance: 50c

Fork

Suntour NCX D-RL, Coil, 63mm suspension travel, Remote Lockout, 700x50C max. wheelsize

Travel: 63mm

Spring Type: Coil

Bottom Bracket

BSA, threaded

Headset

MERIDA M2340 Neck

Handlebar

MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise

Saddle

MERIDA EXPERT TK, V-mount

Seatpost

MERIDA COMP CC, material: aluminium, 30.9mm diameter, 12mm setback

Type: Rigid

Pedals

VP VPE-891

Groupset
Rear Derailleur

Shimano XT Shadow

Front Derailleur

Shimano Deore

Crank

FSA Alfa Drive, 48-36-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL

Shifters

Shimano Deore

Cassette

Shimano HG500, 11-34 teeth, 10 speed

Chain

KMC X10

Brakes

Shimano MT-400, 2 piston

Type: Shimano Hydraulic Disc

Brake Levers

Shimano MT-200

Wheels
Rims

MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium

Spokes

Black stainless

Front Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Overdrive II, 700x40C, fold, reflective stripe, Silkworm

Disc Rotors

Shimano RT10, 160 mm
