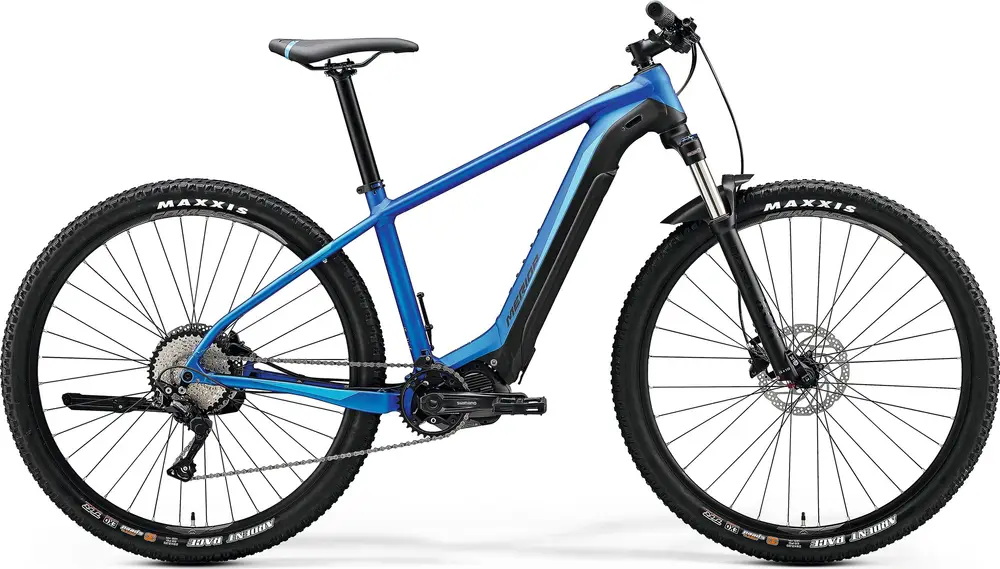

2020 Merida
eBIG.NINE 400
A 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range
| MSRP | £3,200 (about $4,052) |
|---|---|
| Weight | 47.7 lbs |
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCR Air |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore, Shimano |
| Motor | Shimano 250W 60Nm mid-drive |
| Battery | Shimano 504Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'4" – 5'10"
5'8" – 6'3"
6'0" – 6'6"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | eBIG.NINE LITE II, material: aluminium, 29" wheelsize, 148x12mm axle standard, intube, max. 504 Wh BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Suntour XCR34 LOR, Air, 100mm suspension travel, Tapered, 51mm fork offset Travel: 100mm Spring Type: Air |
| Bottom Bracket | included |
| Headset | MERIDA 1901 |
| Handlebar | MERIDA Expert CC, material: aluminium, 720mm width, 10mm rise |
| Saddle | MERIDA Comp CC, V-mount |
| Seatpost | MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback Type: Rigid |
| Pedals | VP, VPE-537 |
| Rear Derailleur | Shimano Deore Shadow+ |
|---|---|
| Crank | Shimano CRE70-B, 36 teeth, Shimano FC-E8000 |
| Shifters | Shimano Deore |
| Cassette | Shimano HG500, 11-42 teeth, 10 speed |
| Chain | CNHG54 |
| Brakes | Shimano MT-200 Type: Hydraulic Disc |
| Rims | MERIDA Comp CC, 20mm inner width, material: aluminium |
|---|---|
| Front Hub | MERIDA COMP TR |
| Rear Hub | MERIDA COMP TR |
| Tires | Maxxis Ardent Race |
| Disc Rotors | Shimano RT30 / Shimano RTEM300 |
| Motor | Shimano E7000, 60Nm |
|---|---|
| Battery | Shimano E8035, 504Wh |
| Display | Shimano SC-E7000 |
| Lights | CG-119PG-BLACK(1) / CG-404RG-BLK |
|---|---|
| Stand | CL-KA98, 29" |
