2020 Merida

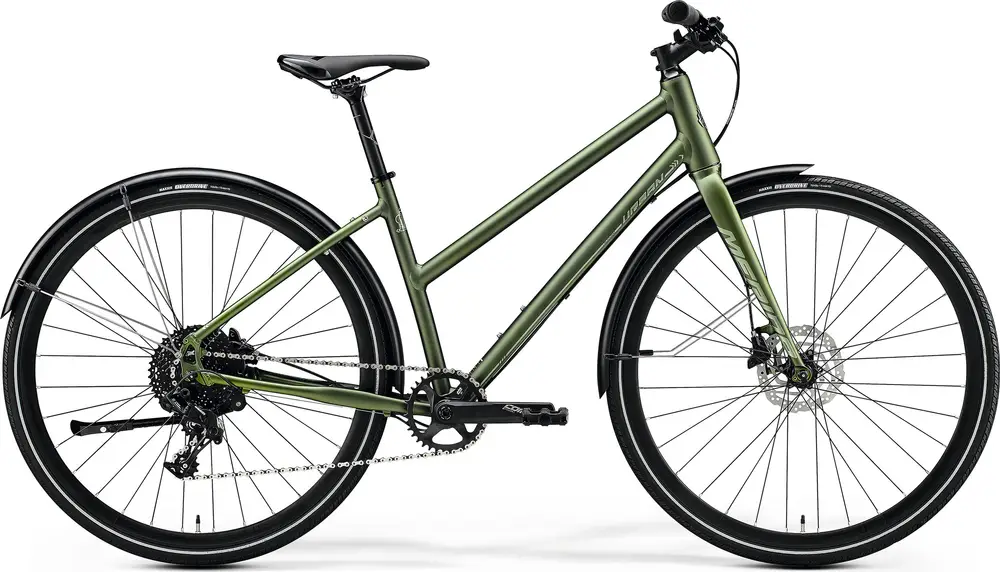

CROSSWAY URBAN L 300
A 700c aluminum frame hybrid bike with upper mid-range components and hydraulic disc brakes.
| Weight | 25.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | NX, FSA |
| Brakes | Hydraulic Disc |
For This Bike
< 4'11"
4'9" – 5'1"
4'11" – 5'5"
5'2" – 5'9"
5'4" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2019 · Matt Lamy
A handsome, comfortable and stable bike, but it could do with better wheels and tyres
| Frame | CROSSWAY URBAN TFS L, material: aluminium, 700C wheelsize, 100x15/135x9mm axle standard, BSA bottom bracket standard BB Standard: BSA, 100mm, Threaded |
|---|---|
| Fork | CROSSWAY URBAN LITE, Tapered, material: aluminium |
| Bottom Bracket | FSA BB-7100 |
| Headset | MERIDA M2341 neck |
| Handlebar | MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise |
| Saddle | MERIDA EXPERT TK, V-mount |
| Seatpost | MERIDA COMP CC, material: aluminium, 27.2mm diameter, 12mm setback Type: Rigid |
| Pedals | VP VPE-891 |
| Rear Derailleur | SRAM NX |
|---|---|
| Front Derailleur | no |
| Crank | FSA Comet, 36 teeth, 170 mm-XXS/XS, 175 mm-S/XL |
| Shifters | no |
| Cassette | Sunrace CSMS8, 11-42 teeth, 11 speed |
| Chain | KMC X11 |
| Chain Guide | attached |
| Brakes | Shimano MT-200 Type: Hydraulic Disc |
| Brake Levers | Shimano MT-200 |
| Rims | MERIDA URBAN, 16mm inner width, 27mm height, material: aluminium |
|---|---|
| Spokes | Black stainless |
| Front Hub | Joytech D041DSE, 100x9mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub | Joytech D142TSE, 135x9mm width rear hub, 32 spoke holes, Centerlock |
| Tires | Maxxis Overdrive, 700x35C, wire, reflective stripe |
| Fenders | MERIDA 50 F9 |
|---|---|
| Stand | K-Mount kickstand |
