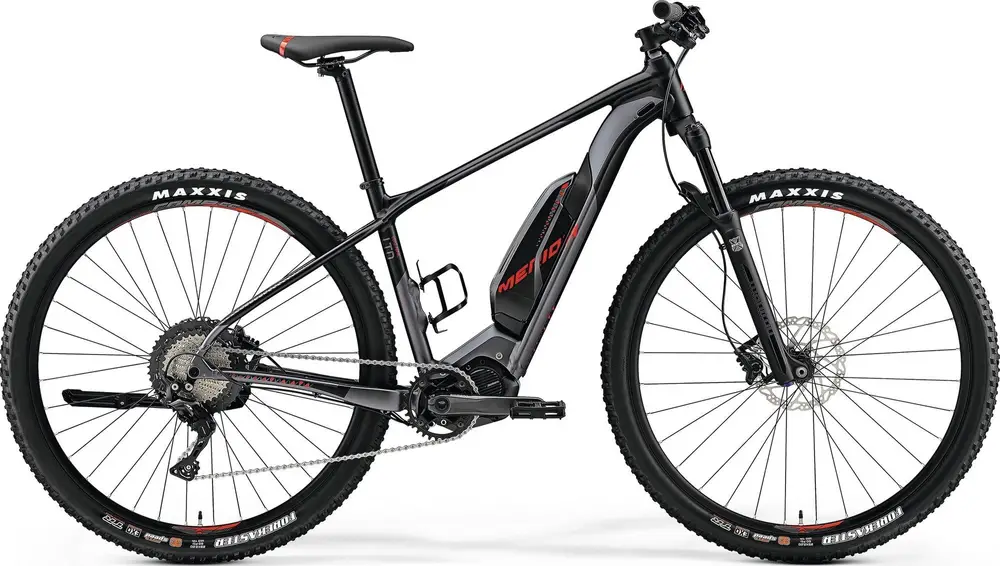

2019 Merida

eBIG.NINE LIMITED

A 29″ hardtail crosscountry e-bike with high-end components.
Compare the full range

Weight41.2 lbs
SuspensionHardtail, 100mm
ForkManitou Machete Comp
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetXT, SLX
MotorShimano 250W 60Nm mid-drive
BatteryShimano 504Wh
BrakesShimano Hydraulic Disc
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eBIG.NINE LIMITED
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

eBIG.NINE LIMITED

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eBIG.NINE

Fork

Manitou Machete Comp, Air, 100mm suspension travel, Tapered

Travel: 100mm

Spring Type: Air

Shock

N/A

Headset

MERIDA 2341 Neck, 2191022388

Stem

Merida Expert CC, 31.8mm diameter, 6° stem angle

Handlebar

MERIDA Expert CC, 720mm width, 10mm rise

Saddle

MERIDA Comp CC

Seatpost

MERIDA Expert, 30.9mm diameter, 15mm setback

Type: Rigid

Pedals

VP, VPE-537

Grips

Merida Expert EC

Groupset
Rear Derailleur

Shimano XT M8000 Shadow+

Front Derailleur

no

Crank

Shimano CRE70-B, 34 teeth

Shifters

no / Shimano SLX 11

Cassette

Shimano M7000, 11-46 teeth, 11 speed

Chain

KMC e11 Sport EPT

Chain Guide

Mr. Control CH-E8 mini

Brakes

Shimano MT-500

Type: Shimano Hydraulic Disc

Brake Levers

attached

Wheels
Rims

MERIDA Comp CC, 20mm inner width,

Spokes

Black stainless

Front Hub

Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock

Rear Hub

Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock

Tires

Maxxis Forekaster, 29x2.2", fold

Electric Components
Motor

Shimano E7000, 60Nm

Battery

Shimano E8010, 504 Wh

Remote

Shimano SC-E7000

Display

Shimano SC-E7000
