2018 Merida

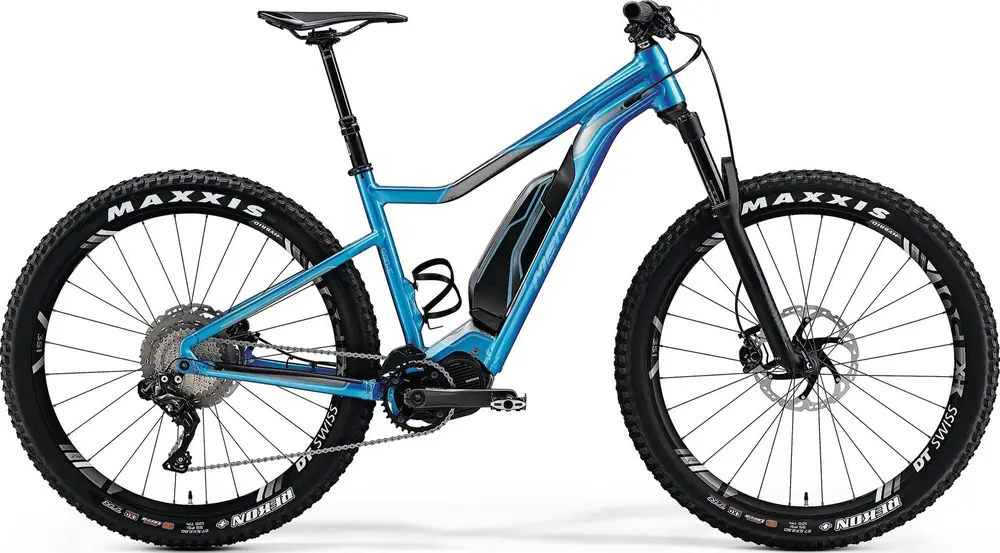

eBIG.TRAIL 900E

A 27.5″ hardtail trail e-bike with high-end components.
Compare the full range

Weight45.2 lbs
SuspensionHardtail, 130mm
ForkRockShox Pike RCT3
Wheels27.5″ Aluminum
Drivetrain1 × 11 Electronic
GroupsetXT Di2
MotorShimano 250W 70Nm mid-drive
BatteryShimano 500Wh
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eBIG.TRAIL 900E
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

eBIG.TRAIL 900E

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eBIG.TRAIL

Fork

Rock Shox Pike RCT3, 130mm travel, B Boost

Travel: 130mm

Shock

N/A

Headset

FSA NO.55EP neck

Stem

Merida Expert SS, 45mm length

Handlebar

MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°

Saddle

MERIDA EXPERT

Seatpost

Rock Shox Reverb Stealth 30.9mm

Type: Dropper

Pedals

VPE-537

Groupset
Rear Derailleur

Shimano XT Di2 RD-M8050

Crank

Shimano CRE80-B 34, SM-CDE 80 Chainguide

Shifters

Shift Switch XT Di2

Cassette

Shimano XT, 11 speed, 11-46 teeth

Chain

KMC X11e

Chain Guide

Shimano SM-CDE 80

Brakes

Shimano XT hydraulic disc brakes with Ice-tech cooling, 203mm 6 bolt rotors

Type: Shimano XT Hydraulic Disc

Brake Levers

attached

Wheels
Rims

DT Swiss HX1501 Spline one 35 boost wheelset

Spokes

DT Swiss

Front Hub

DT Swiss HX 1501 Spline One, Boost

Rear Hub

DT Swiss HX 1501 Spline One, Boost

Tires

Maxxis Rekon 27.5"+ 2.8" folding

Electric Components
Motor

Shimano [E8000]

Battery

Shimano E8010 500Wh

Remote

Shimano SC-E8000, LCD color display showing color coded assist levels, time, battery status, speed, distance, total distance, riding time, estimated range, range overview, error messages, cadence, power input of rider in watts, and calorie consumption

Display

Shimano SC-E8000

Rider Notes
Riders Also Viewed

First added April 14

Last updated October 11

Not listed for 2,787 days
