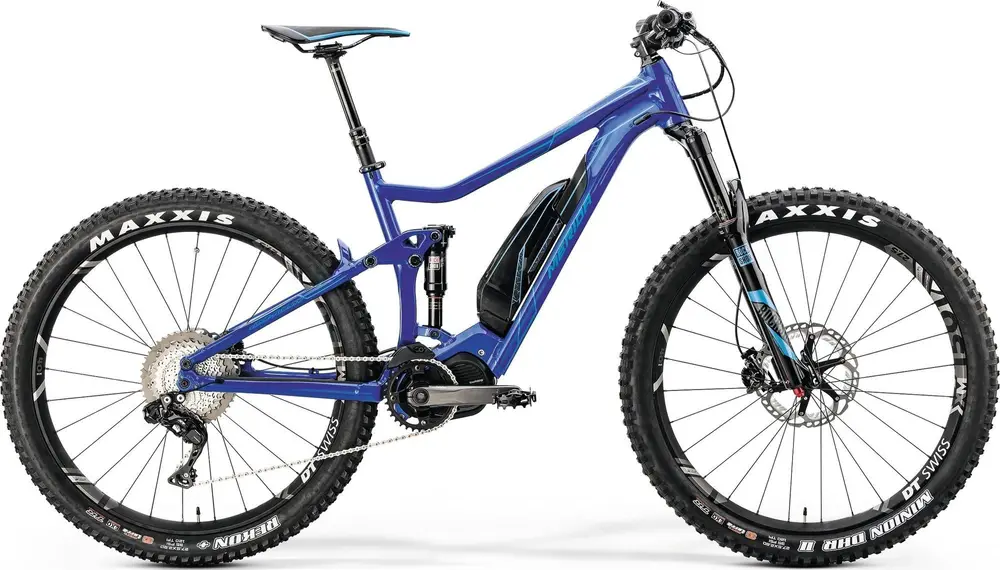

2017 Merida

eONE-TWENTY 900E

A 27.5″ full suspension trail e-bike with high-end components.
Compare the full range

Weight47.4 lbs
SuspensionFull
ForkRockShox Pike RCT3
ShockRockShox Super Deluxe
Wheels27.5″ Aluminum
Drivetrain1 × 11 Electronic
GroupsetXT Di2
MotorShimano 250W 70Nm mid-drive
BatteryShimano 500Wh
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on merida-bikes.comLearn about Merida
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Handling
nimblestable
eONE-TWENTY 900E
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

eONE-TWENTY 900E

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
MBR
Merida eOne-Twenty 900E (2017) review - MBR

Feb 2017 · Mountain Bike Rider

The Merida eOne-Twenty provides a thrilling and intoxicatingly addictive ride. Great geometry, rapid and flickable. One of the lightest e-mtbs available.

Highs

  • Rides like a regular mountain bike.

  • Smooth and quiet pedal-assist.

  • Lightweight.

Lows

  • Large power gap between Trail and Boost modes.

  • No space under the bars for the Reverb remote lever.

Read Review

E-Mountainbike Magazine
MERIDA eONE-TWENTY 900 E – It looks ace and its spec is top, but how does it handle?

Nov 2016 · Christoph Bayer

With a development centre in Germany, they’re still on the quest for perfection, and the promising MERIDA eONE-TWENTY 900E is definitely going in the right…

Read Review

Geometry
Specs
Build
Frame

eONE-TWENTY (STePS)

BB Standard: STEPS, Press Fit

Fork

Rock Shox PIKE RCT3 27.5"+ BOOST

Shock

Rock Shox Super Deluxe RT

Bottom Bracket

STEPS, press-fit

Handlebar

MERIDA EXPERT 35 760

Saddle

MERIDA Expert

Seatpost

Rock Shox Reverb Stealth 30.9

Type: Dropper

Groupset
Rear Derailleur

Shimano XT GS Shadow+

Crank

Shimano CRE80-B 34, SM-CDE 80 Chainguide

Shifters

Shift Switch XT Di2

Cassette

Shimano XT 11-46 11s

Chain

KMC X11EL

Brakes

Shimano XT fin ice

Type: Shimano XT Hydraulic Disc

Brake Levers

attached

Wheels
Rims

DT Swiss XM1501 Spline one 40 boost TC

Spokes

attached

Front Hub

attached

Rear Hub

attached

Tires

Maxxis Rekon 27.5+ 2.8 fold / Maxxis DHR 2 27.5+ 2.8 fold

Electric Components
Motor

Shimano DU-E8000

Battery

Shimano E8010 500Wh

Display

Shimano Cyclo display SC-E8000

Accessories
Lights

battery lamp
