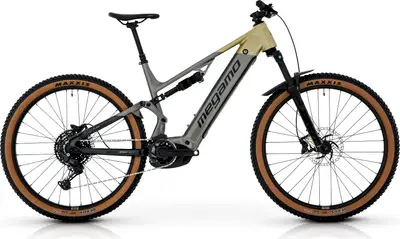

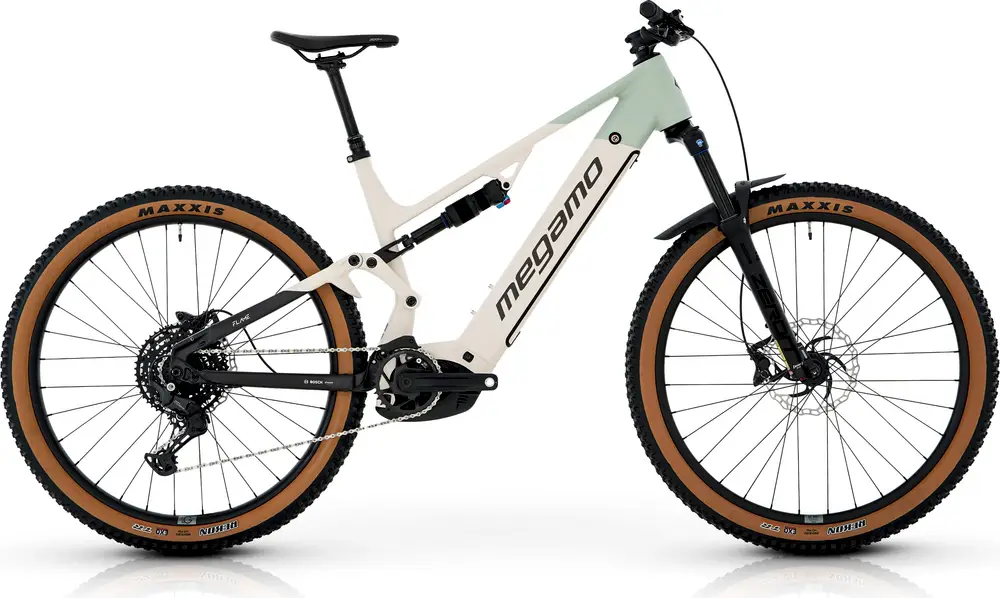

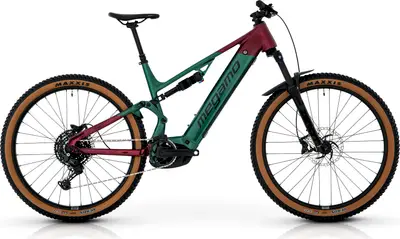

2025 Megamo

FLAME AL 20+

A 29″ aluminum frame full suspension enduro e-bike with mid-range components.
Compare the full range

Manufacturer Price

€4,799($5,584)
FrameAluminum
SuspensionFull, 160 / 150mm
ForkSuntour Zeron
ShockSuntour
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorBosch 750W 100Nm mid-drive
BatteryBosch 800Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on megamo.comLearn about Megamo
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
FLAME AL 20+
Other Enduro bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

FLAME AL 20+

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full FLAME model range

View Comparison
Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm

BB Standard: Bosch, Press Fit

Colors: Black; Green; Forest

Fork

SUNTOUR Zeron 36X, 150mm Travel, Boost, Air

Travel: 150mm

Spring Type: Air

Shock

SUNTOUR RS25 Edge Evo 2CR, 230x57,5mm, Metric, LVN

Travel: 160mm

Bottom Bracket

Bosch, press-fit

Headset

Acros AZX-589 ZS56 blocklock 150º

Stem

Megamo 3D Forged Alloy, ±7º Rise, S size 60 mm / M size 60 mm / L size 70 mm

Handlebar

Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6º Back Sweep

Saddle

Fizik Terra Aidon X5

Seatpost

Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop

Type: Dropper

Groupset
Rear Derailleur

Shimano CUES TD-U6000-GS, ShadowPlus 10-Speed

Crank

FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm

Shifters

Shimano CUES 6000 Speed Rapidfire Plus 10-Speed

Cassette

Shimano CUES 300 11-48T

Brakes

Shimano MT420 hydraulic disc 4-Piston, 203mm

Type: Shimano Hydraulic Disc

Wheels
Rims

Megamo 29 SL 30 ASY - HG, 30 mm Tubeless ready Aluminium rim

Front Hub

Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+

Rear Hub

Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+

Tires

MAXXIS 29 x 2.6 Rekon

Electric Components
Motor

Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W

Battery

Bosch PowerTube 800

Display

Bosch Purion 200
