Today’s Deals2025 Megamo

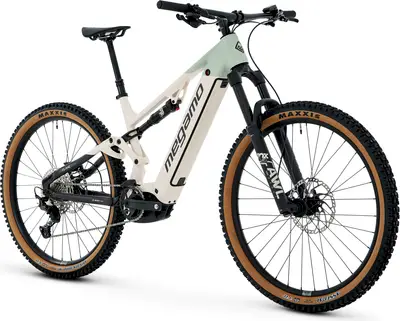

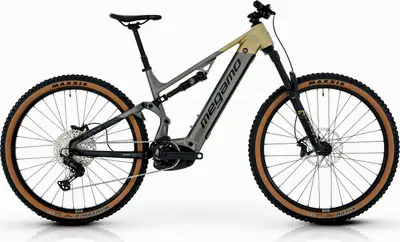

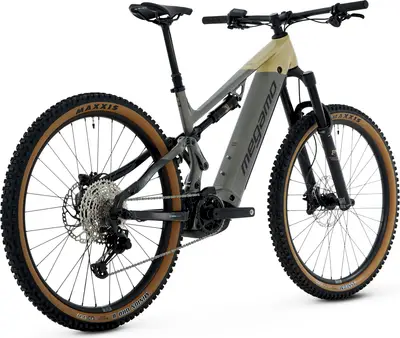

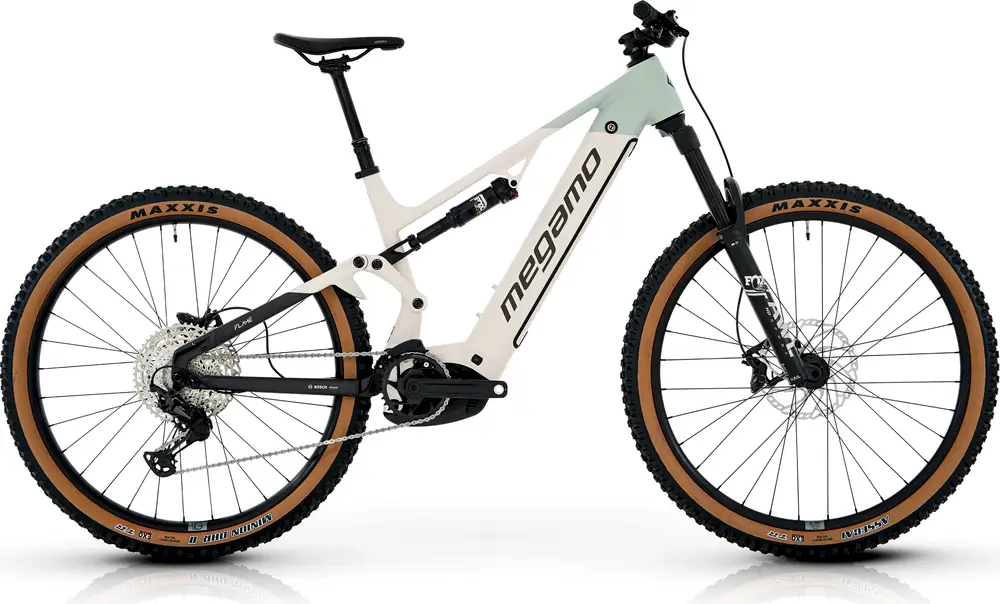

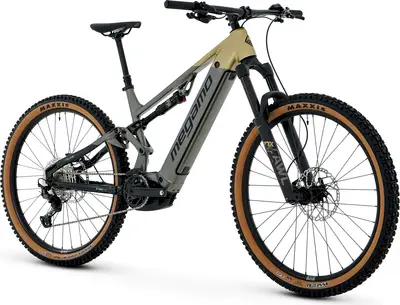

FLAME AL 05
A 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€6,099($7,096)| Frame | Aluminum |
|---|---|
| Suspension | Full, 160 / 150mm |
| Fork | Fox AWL |
| Shock | Fox |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Deore |
| Motor | Bosch 750W 100Nm mid-drive |
| Battery | Bosch 800Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full FLAME model range
View Comparison5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm BB Standard: Bosch, Press Fit Colors: Forest; Black; Green |
|---|---|
| Fork | Fox 36 FLOAT AWL HD Sport 29, 150mm, 15QRx110 Boost, 1.5T, 68HT, 44mm rake Travel: 150mm Spring Type: Air |
| Shock | Fox Float Rhythm, Evol LV, 230x57,5mm Travel: 160mm |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros AZX-589 ZS56 blocklock 150º |
| Stem | Megamo 3D Forged Alloy, ±7º Rise, S size 60 mm / M size 60 mm / L size 70 mm |
| Handlebar | Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6º Back Sweep |
| Saddle | Fizik Terra Aidon X5 |
| Seatpost | Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop Type: Dropper |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|---|
| Crank | FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm |
| Shifters | Shimano Deore 6100 Speed Rapidfire Plus 12-Speed |
| Cassette | Shimano Deore 6100 10-51T |
| Brakes | Shimano MT520 hydraulic disc 4-Piston, 203mm Type: Shimano Hydraulic Disc |
| Rims | Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim |
|---|---|
| Front Hub | Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+ |
| Rear Hub | Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+ |
| Tires | Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II |
| Motor | Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W |
|---|---|
| Battery | Bosch PowerTube 800 |
| Display | Bosch Purion 200 |
