Black / Purple

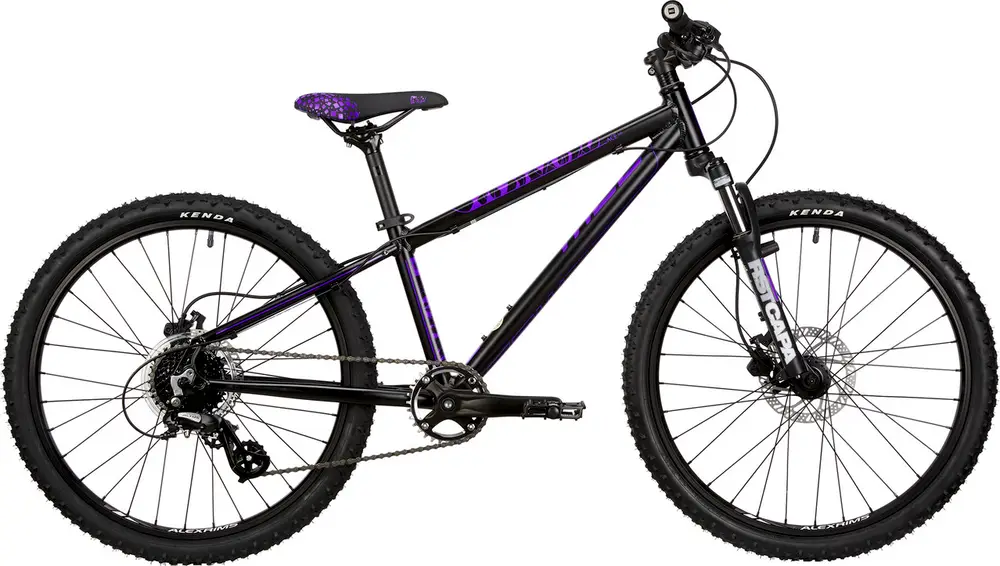

The Ace is a "real-deal" mountain bike for kids from about 8 to 11. It uses a time-tested frame, burly enough for singletrack riding and for taking wee hits and drops. The hydraulic brakes offer control, so kids can learn to confidently feather the brakes as needed, and the brakes can be adjusted so they're right for your kid's reach and hand size. Wide bars, knobby tires, tuneable suspension and a 1x8 drivetrain make it a fully capable bike that's up for north-shore-style trails and full-on downhill ripping.Lightweight aluminum frame is durable and ready to hit the trailsAggressive 24 x 2.0in. tires ready for hardpack, soft surfaces and muddy trailsTektro Jr. hydraulic disc brakes with adjustable reach to match your child's handsRST Capa T24 suspension fork has 50mm of travel and can be locked-out for ease of climbing1x8 speed drivetrain features Shimano trigger shifters and 12-32T cassette32T narrow-wide chainring makes dropping your chain a thing of the past620mm wide bars for control on bumpy trailsPreload feature on the fork adjusts for different rider weightsLock-on grips prevents unwanted grip twisting and helps with controlFlat pedals provide good gripBuilt with Shimano® componentsSized for kids from 8 to 11 years, or about 135 to 150cm (4ft. 5in. to 4ft. 11in.)Bikes are covered by MEC's Rocksolid Guarantee and Bike Service Agreement. You can bring your bike to any MEC bike shop for free adjustments and minor maintenance for a year after purchaseMEC bikes were designed in Canada. Everything from the frames to the graphics was developed at the MEC Head Office in Vancouver, BCDue to challenges with supply chain, components may be substituted for comparable parts at any time. The listed build is how MEC intended your bike to arrive, though the manufacturer may need to make a tweak or two to get you riding sooner

MEC Ace Ltd.

One Size

A 24″ aluminum frame mountain youth bike with modest components and tektro hydraulic disc brakes.

Weight	27.1 lbs
Frame	Aluminum
Suspension	Hardtail
Fork	RST CAPA
Wheels	24″ Aluminum
Drivetrain	1 × 8
Groupset	Altus
Brakes	Tektro Hydraulic Disc

Frame	MEC 6061 butted aluminum Color: Black / Purple
Fork	RST Capa T24 Spring Type: Coil
Bottom Bracket	VP
Headset	FSA TH-888
Stem	MEC AS-007 65mm +/- 7º
Handlebar	MEC Mountain Riser 31.8mm
Saddle	Selle Royal Hello
Seatpost	MEC SP DC 1 Type: Rigid
Pedals	MEC Mtn Jr.

Crank	LASCO FM25 32T
Shifters	Shimano Altus Rapid Fire
Cassette	Shimano CS-HG200 8-speed 12-32T
Chain	Shimano HG53-8
Brakes	Tektro Jr. (hydraulic disc) Type: Tektro Hydraulic Disc
Brake Levers	Tektro Jr. adjustable

Rims	Alex DC26
Spokes	Stainless
Front Hub	Formula DC22
Rear Hub	Formula DC20
Tires	Duro Rugged Wolf 24 x 2.0

2024 MECAce Ltd.

2024 MEC
Ace Ltd.
