Tektro C550 Flat Mount Dual Pistion Mechanical Disc, 160mm Rotor F/R

Dirt-Tuned MC7 Carbon w/Carbon Tapered 1 1/8"-1.5" Steerer, Flatmount Disc, 12mm Thru-Axle, Rack & Fender Mounts

Tig Welded Double Butted Columbus CRMOR Chromoly Tubing, Flatmount Disc Mount, 1 1/8"-1.5" Tapered H/T, 12mm F/R Thru-Axle

Alloy Disc Sealed Bearing, 12mm Thru-Axle, 28h

Brev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm

Brev M. 23mm internal Tubeless Ready, Double Wall, 28h.

The CXGR Expert emerges lighter, braver, and more advanced than ever before. The refreshed frame features 12mm thru-axle dropouts, dropper post routing, flat mount disc brakes combined with an all new full carbon tapered fork and a 3D forged cockpit provides stability and confidence on those sketchy loose descents. Shimano's 10 speed Tiagra group paired with a Praxis Alba M24 crankset delivers high and low cadence options for those decisive moments and positions the CXGR Expert as Masi's hard hitting and best selling gravel packages.

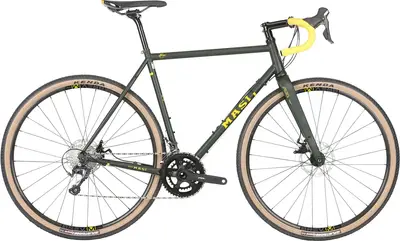

Masi CXGR Expert

49cm

51cm

53cm

56cm

58cm

60cm

A steel frame gravel bike with mid-range components and tektro mechanical disc brakes.

Frame	Steel
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 10
Groupset	Tiagra
Brakes	Tektro Mechanical Disc

Frame	Tig Welded Double Butted Columbus CRMOR Chromoly Tubing, Flatmount Disc Mount, 1 1/8"-1.5" Tapered H/T, 12mm F/R Thru-Axle BB Standard: BSA, 68mm, Threaded
Fork	Dirt-Tuned MC7 Carbon w/Carbon Tapered 1 1/8"-1.5" Steerer, Flatmount Disc, 12mm Thru-Axle, Rack & Fender Mounts
Bottom Bracket	Praxis Works M24, English 68mm
Headset	Token 1 1/8"-1.5" Sealed Bearing
Stem	Brev. M 3D Forged Alloy, 31.8mm
Handlebar	Brev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm
Saddle	Masi Corsa Comp
Seatpost	Brev. M 3D Forged Alloy, 27.2mm Type: Rigid
Pedals	N/A

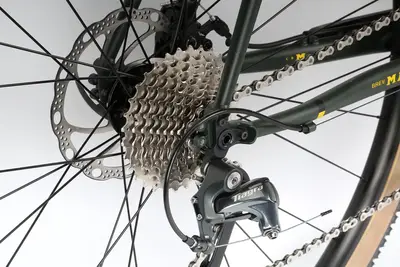

Rear Derailleur	Shimano Tiagra R4700
Front Derailleur	Shimano Tiagra R4700
Crank	Praxis Works Alba M24 48/32t
Shifters	Shimano Tiagra R4700
Cassette	Shimano HG-500 11-32T 10-spd
Chain	KMC X10

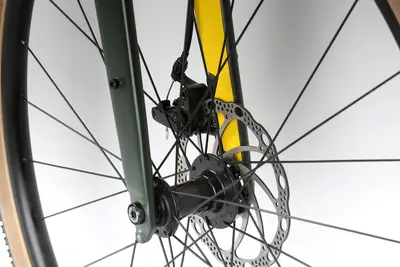

Brakes	Tektro C550 Flat Mount Dual Pistion Mechanical Disc, 160mm Rotor F/R Type: Tektro Mechanical Disc
Brake Levers	Shimano Tiagra R4700

Rims	Brev M. 23mm internal Tubeless Ready, Double Wall, 28h.
Front Hub	Alloy Disc Sealed Bearing, 12mm Thru-Axle, 28h
Rear Hub	Alloy Disc Sealed Bearing, 12mm Thru-Axle, 28h
Tires	Kenda Flintridge 700x40mm, 30tpi

2020 MasiCXGR Expert

2020 Masi
CXGR Expert
