Promax DSK300R Mechanical Disc, 160mm Rotor F/R

Stright Blade Uni-Crown Disc Chromoly, IS Disc Mount, 1 1/8"

Tig Welded Double Butted Chromoly Tubing, IS Disc Mount

Brev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm

Brev M. 23mm internal Tubeless Ready, Double Wall, 32h.

Masi's entry level CXGR/All Road bike offers a wide range of benefits to deliver a unique riding experience. Featuring 21mm wide internal Brev.M disc specific wheels, rack and fender mounts and a Masi straight blade uni-crown full chromoly fork, the CXGR transitions easily from a dependable off pave companion into a versatile and daily commuter. The Brev.M 3D forged stem and seat post along with a fully redesigned lighter handlebar provide confident control and a significant weight savings to make the CXGR a highly capable, affordable, and dependable.

Masi CXGR

49cm

51cm

53cm

56cm

58cm

60cm

A steel frame gravel bike with mid-range components and promax mechanical disc brakes.

Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Drivetrain	2 × 8
Groupset	Claris
Brakes	Promax Mechanical Disc

Frame	Tig Welded Double Butted Chromoly Tubing, IS Disc Mount BB Standard: BSA, 68mm, Threaded
Fork	Stright Blade Uni-Crown Disc Chromoly, IS Disc Mount, 1 1/8"
Bottom Bracket	FSA Sealed Cartridge, English 68mm
Headset	Token 1 1/8" Alloy External Cup
Stem	Brev. M 3D Forged Alloy, 31.8mm
Handlebar	Brev. M Compact Adventure Bend Alloy, 12 Degree Flair, 31.8mm
Saddle	Masi Corsa Comp
Seatpost	Brev. M Alloy, 27.2mm Type: Rigid
Pedals	Nylon Test Ride

Rear Derailleur	Shimano Claris R2000
Front Derailleur	Shimano Claris R2030
Crank	FSA Tempo Adventure 46/30T
Shifters	Shimano Claris R2000

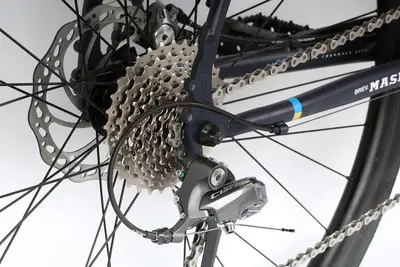

Cassette	Shimano HG-50, 11-32T 8-spd
Chain	KMC Z8

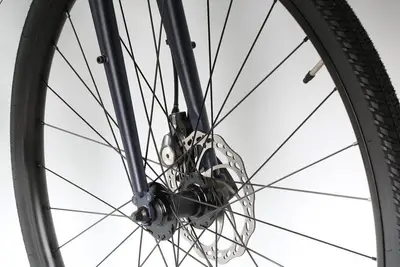

Brakes	Promax DSK300R Mechanical Disc, 160mm Rotor F/R Type: Promax Mechanical Disc
Brake Levers	Shimano Claris R2000

Rims	Brev M. 23mm internal Tubeless Ready, Double Wall, 32h.

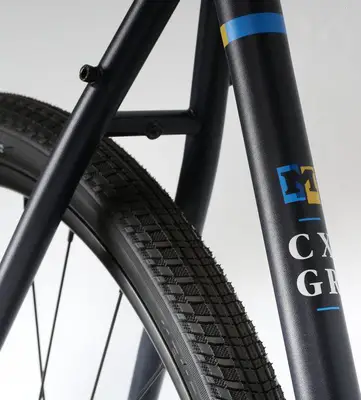

Tires	Kenda Kwick Trax, 700x38mm, 30tpi

2019 MasiCXGR

2019 Masi
CXGR
