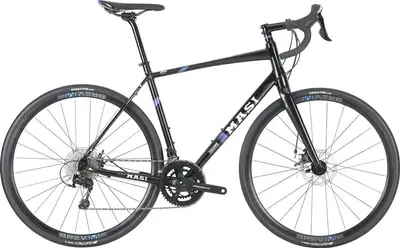

2018 Masi

Volare

An aluminum frame endurance bike with upper mid-range components and hydraulic disc brakes.

MSRP$2,199
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 11
Groupset105, Praxis
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
Volare
Other Endurance bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

Volare

39 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'7"

SM

5'4" – 5'9"

MD

5'6" – 6'0"

MD/LG

5'8" – 6'2"

LG

5'11" – 6'4"

XL

6'2" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Masi MA5 Disc Double-Butted Alloy w/Tapered 1.5" headtube, BB86 Press Fit BB, Flat Mount Disc Brake, 12mm Thru Axle

BB StandardBB86/BB92, Press Fit

Fork

Masi Elite/RS Disc, Carbon w/Tapered 7075 Alloy Steerer, Flat Mount Disc Brake, 12mm Thru Axle

Bottom Bracket

Praxis Works M24

Headset

FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5" Industrial Sealed Bottom

Stem

Brev. M 3D Forged Alloy Flip Flop

Handlebar

Brev. M Compact Bend Alloy

Saddle

Masi Corsa Comp

Seatpost

Brev. M 3D Forged Alloy, 27.2 x 300mm, 25mm offset

TypeRigid

Pedals

Nylon Test Ride

Groupset
Rear Derailleur

Shimano 105 R5800

Front Derailleur

Shimano 105 R5801

Crank

Praxis Works Alba SubCompact M24 48/32t

Shifters

Shimano 105 R5800

Cassette

Shimano CS5800 11-32t 11-spd

Chain

KMC X11

Brakes

LeeChi DeCode R Flat Mount Dual Piston Mechanical Disc

TypeHydraulic Disc

Brake Levers

Shimano 105 R5800

Wheels
Rims

Brev M. Disc Tubeless Compatible, 21mm Internal

Front Hub

Alloy Disc, Thru-Axle, 24/28h

Rear Hub

Alloy Disc, Thru-Axle, 24/28h

Tires

Kenda Kriterium 700x28mm

Rider Notes
