Today’s Deals2022 Marin

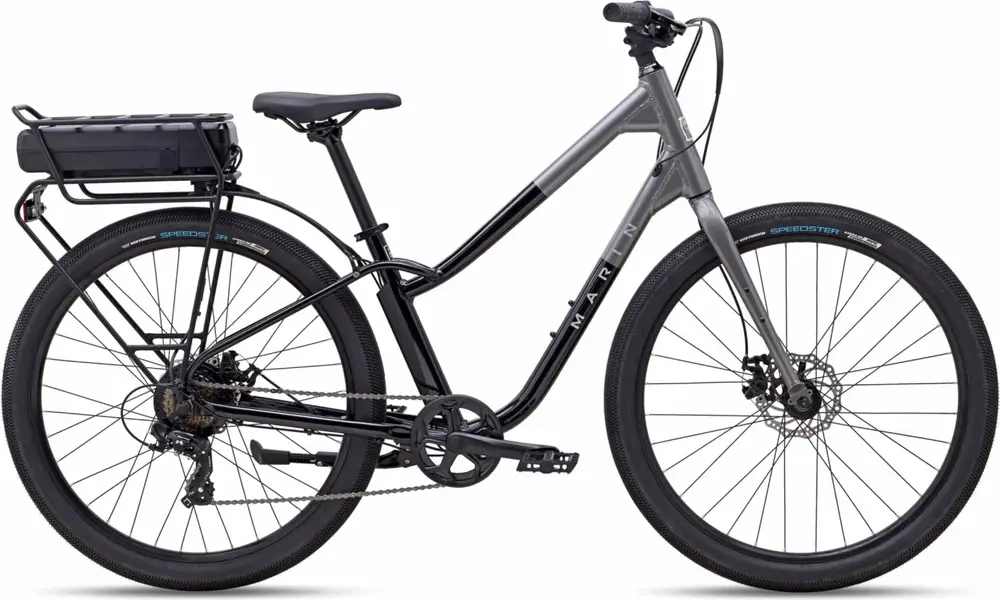

Stinson E
A 650b aluminum frame hybrid e-bike with mid-range components and mechanical disc brakes.
Compare the full range
Manufacturer Price
$1,699| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 7 |
| Groupset | Tourney, Altus |
| Motor | 250W 40Nm hub-drive |
| Battery | 309Wh |
| Brakes | Mechanical Disc |
5'0" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Series 1 Comfort, eBike-Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts Color: Gloss Black / Charcoal |
|---|---|
| Fork | CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets |
| Bottom Bracket | Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper |
| Headset | FSA, TH No.10P |
| Stem | Marin Alloy |
| Handlebar | Marin Alloy, 25mm Rise, 18˚ Backsweep |
| Saddle | Marin Comfort |
| Seatpost | Marin Alloy, 30.9mm Type: Rigid |
| Pedals | Marin Comfort Platform |
| Grips | Marin County |
| Rear Derailleur | Shimano Tourney, 7-Speed |
|---|---|
| Front Derailleur | - |
| Crank | Alloy Crank, Steel 38T Chainring, Ring Guard |
| Shifters | Shimano Altus 7-Speed RapidFire |
| Cassette | Shimano 7-Speed Freewheel, 14-34T |
| Chain | KMC Z8 |
| Brakes | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor Type: Mechanical Disc |
| Brake Levers | Alloy, Long Pull |
| Rims | Marin Aluminum Double Wall, Disc Specific |
|---|---|
| Front Hub | Forged Aluminum Alloy, 32H |
| Rear Hub | 250 Watt Hub Motor, 40Nm torque, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world |
| Tires | Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection |
| Motor | 250 Watt Hub Motor, 40Nm torque, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world |
|---|---|
| Battery | 309Wh, 36V, Rear Carrier Mounted |
| Remote | Handlebar Mount Switch & LCD Display |
| Racks | Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck. Note: carrier does not conform to EN ISO 11243:2016 standards and is NOT designed for use with a child carrier. |
|---|
