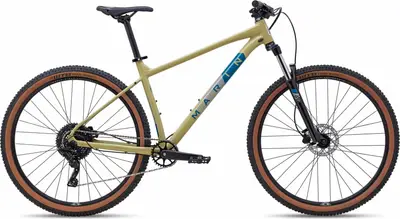

2022 Marin Bobcat Trail 4

A 27.5″ / 29″ aluminum frame hardtail trail bike with mid-range components. Compare the full range

2022 Marin Bobcat Trail 4
MSRP$949
Spec Level
SuspensionHardtail
Travel120mm front
FrameAluminum
ForkSuntour XCM HLO
Wheels27.5″ / 29″ Aluminum
Drivetrain1 × 9
GroupsetmicroSHIFT Advent
BrakesHydraulic Disc
Where to Buy
Similar Bikes Available Now
Compare With Similar Bikes

View more similar bikes »


Gearing

1 × 9 — 9 speed

Bobcat Trail 4

25 mph

Similar Bikes

26 mph

Similar bikes are easier to ride up hills than the Bobcat Trail 4.

The Bobcat Trail 4 is geared about the same as similar bikes for riding downhill.


Estimated Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more »

Spec level →$0$200$400$600$800
This bike
Other trail bikes

Reviews
BikeRadar
Marin Bobcat Trail 3 review

Tom Marvin

A fun-to-ride, versatile bike with a good, if not exceptional, parts spec for the money

  • Well-built and versatile frame

  • Brakes and drivetrain work efficiently

  • Tyres are fast-rolling and efficient, helping on climbs

  • On technical or loose terrain, a burlier front tyre wouldn’t go amiss

  • Fork feels flexy in extended 29er form without a thru-axle

Mar 2020Read Review

off.road.cc
Marin Bobcat Trail 3 2020 review

Marin's Bobcat Trail 3 manages to both look and ride like a much more expensive bike than it is, with a quality frame and geometry that comes from the 'proper trail bike' book to deliver a really capable ride. Compromises in the drivetrain and suspension to get it on budget are apparent, but it's still a solid machine that delivers a lot of fun for not much cash.

Jan 2020Read Review


Geometry

Sizing
SM

5'2" – 5'5"

MD

5'6" – 5'11"

LG

5'9" – 6'1"

XL

5'11" – 6'4"

🐐 Estimated


Specs
Build
Frame

Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

ColorsGloss Silver / Red/grey; Gloss Tan / Blue-Green/grey

Fork

SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Headset

FSA No.10-P

Stem

Marin Alloy, 31.8mm Clamp, 45mm

Handlebar

Marin 31.8 Riser, 12mm Rise, 780mm Width

Saddle

Marin MTB

Seatpost

Marin Alloy, 30.9

Pedals

Nylon Platform

Grips

Marin MTB, Closed End

Groupset
Rear Derailleur

MicroSHIFT Advent 9, Clutch

Front Derailleur

-

Crank

Alloy Crank, Steel Narrow-Wide Chainring, 32T

Shifters

MicroSHIFT Advent 9 Trail

Cassette

SunRace 9-Speed, 11-46T

Chain

KMC X9

Brakes

Hydraulic Disc

Brake Levers

Tektro M275 Hydraulic Disc

Wheels
Rims

Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

Front Hub

Forged Alloy, Disc, 32H

Rear Hub

Forged Alloy, Disc, 32H

Tires

WTB Trailboss Comp, 27.5/29x2.25, Wire Bead
