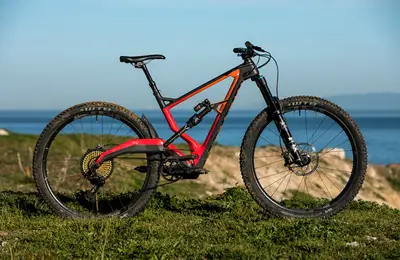

2020 Marin
Wolf Ridge Pro
A 29″ carbon frame full suspension enduro bike with ultra high-end components.
Compare the full range
Manufacturer Price
$6,799| Frame | Carbon |
|---|---|
| Suspension | Full, 160mm rear |
| Fork | Fox Factory Float 36 |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 |
| Groupset | XTR, e*thirteen TRS Race |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'7"
5'5" – 5'11"
5'9" – 6'3"
6'1" – 6'4"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2018
We’ve received our new long-term test bike, and we are as curious as a cat to get to the trails and spend some quality time with one of the whackiest mountain bikes on the market. What on earth is it!? The Wolf Ridge 9 is a 160mm travel 29er with a full-carbon frame that uses Naild’s R3ACT …
Amazing suspension performance.
Super fast.
Unconventional and unique.
Decent value and great spec.
Yet to feel comfortable on steep climbs.
Rear-end flex - a good or bad thing?
No lockout will take some getting used to.
Mar 2018 · Drew Rohde
Marin was brave enough to take a leap with Naild and sports 160mm of R3act 2Play suspension, the Wolf Ridge is aimed at...
Feb 2018 · Seb Stott
The novel suspension has pros and cons, but frame flex and slightly dated geometry lets it down relative to its rivals
Unparalleled in-built pedalling efficiency, bump-eating ride (most of the time)
Pedal kickback and frame flex often chokes otherwise plush suspension, geometry cramps the Wolf's style both uphill and down
Jan 2018
The Wolf Ridge is Marin’s answer to the ultra-competitive long travel 29er segment. It also serves as the debut for a remarkable new suspension system. - Mtbr.com
Dec 2017
The Marin Wolf Ridge has a suspension design found on only one other bike in existence. For now.
Dec 2017 · MBA Action
A new suspension design that is a real head turner.
Oct 2017
"Wow, that bike actually looks cool in person. I'm not throwing up in my mouth at all..."
Oct 2017 · Trev Worsey
When did mountain biking become a fashion show? Did we miss the memo? When the Marin Wolf Ridge hit the media channels, rather than enlightening talk of kinematics and performance, the forum Kardashians united in cries of “Ugly, hideous, kill it with fire!” Yes, it looks… well, different, but if the R3ACT suspension works, if […]

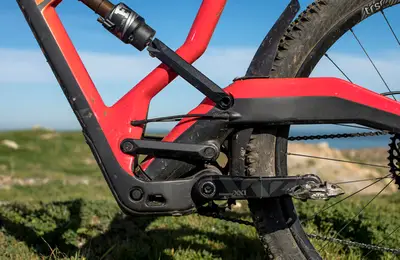

| Frame | Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 160mm Travel, 148mm Boost Rear Spacing, Naild 12-3-9 Locking Quick Release Thru-Axle BB Standard: BB86/BB92, Press Fit |
|---|---|
| Fork | Fox Float 36 29", Factory, GRIP 2 3-Position, High and Low Speed Compression Adjustment, High and Low Speed Rebound Adjustment, 110x15mm Boost Spacing, 51mm Offset Spring Type: Air |
| Bottom Bracket | Shimano XTR PF92 |
| Headset | FSA Orbit, No. 42/47/ACB/S-4, Sealed Cartridge Bearings, 1 1/8"x 1 1/2” |
| Stem | Deity Copperhead Stem, 35mm |

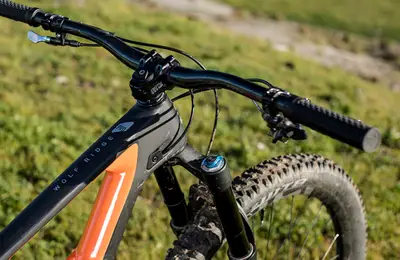

| Handlebar | Deity DC31 Mohawk Carbon Bar, 787mm Width, 25mm Rise, Custom Color |
| Saddle | WTB Volt Team, Ti Rails |
| Seatpost | Fox Transfer Performance Elite, Ano Black with 1x lever, Size S 120mm Travel, All Other Sizes: 150mm Travel, 30.9mm Type: Dropper |
| Pedals | Not Included. |
| Grips | Marin Locking |
| Rear Derailleur | New Shimano XTR, RD-M9100-SGS, Long Cage, Shadow Plus Design |
|---|---|
| Crank | e*thirteen TRSr Carbon, 32T Ultralight Chainring |
| Shifters | New Shimano XTR, SL-M9100-IR, I-Spec EV |
| Cassette | New Shimano XTR, CS-M9100 |
| Chain | KMC 12 Speed with Quick Link |
| Brakes | New Shimano XTR Enduro M9120 Hydraulic Disc Brakes, 203mm Rotor Type: Hydraulic Disc |
| Brake Levers | New Shimano XTR BLM9120 |
| Rims | e*thirteen TRS Race, Carbon Fiber Rim, 28H, 31mm Inner, Hookless, Tubeless Compatible |
|---|---|
| Spokes | The Hive Triple-Butted, Black, J-bend |
| Front Hub | New Shimano XTR, Alloy Body, Cartridge Bearings, 110x15 E-Thru Axle, 28H |
| Rear Hub | New Shimano XTR, Alloy Body, Cartridge Bearings, 148x12 E-Thru Axle, 28H, Mircospline Freehub Body |
| Tires | Front: e*thirteen, TRS Race All-Terrain Tire, 29x2.35", 72tpi, Single Ply Apex Aramid Reinforced, Race Compound, Tubeless Compatible; Rear: e*thirteen, TRS PLUS All-Terrain Tire, 29x2.35", 72tpi, Race Compound, Tubeless Compatible |
