2020 Marin

Team Marin

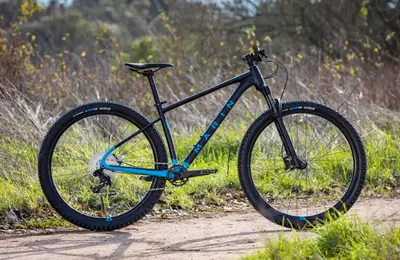

A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.

Manufacturer Price

$1,349
FrameAluminum
SuspensionHardtail, 100mm
ForkRockShox Judy Silver TK
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetNX
BrakesHydraulic Disc
View on marinbikes.comLearn about Marin
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Team Marin
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

Team Marin

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'5" – 5'10"

LG

5'8" – 6'1"

XL

5'11" – 6'3"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle

Fork

RockShox Judy Silver TK, 100mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

Travel: 100mm

Spring Type: Air

Bottom Bracket

External Sealed Cartridge Bearings

Headset

FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Stem

Marin 3D Forged Alloy, 60mm

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back

Saddle

Marin Speed Concept

Seatpost

Marin Alloy, 30.9mm

Type: Rigid

Pedals

Nylon Platform

Grips

Marin MTN, Closed End

Groupset

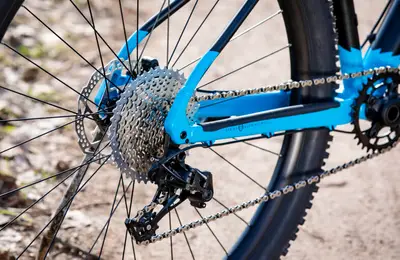

Rear Derailleur

SRAM NX 11-Speed

Crank

Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow-Wide 32T Chainring, BCD 76mm

Shifters

SRAM NX 1x11-Speed

Cassette

SunRace 11-Speed, 11-42T

Chain

KMC X11

Brakes

Shimano BR-MT400 Hydraulic Disc, 160mm Rotor

Type: Hydraulic Disc

Brake Levers

Shimano MT400 Hydraulic

Wheels
Rims

Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Spokes

14g Black Stainless Steel

Front Hub

Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H

Rear Hub

Forged Alloy, 148x12mm, Quad Sealed Cartridge Bearings, Alloy Axle, Centerlock Disc, 32H

Tires

Vee Tire Co, Crown Gem 29x2.3", Dual Control Compound, Wire Bead
