2020 Marin

San Rafael DS2

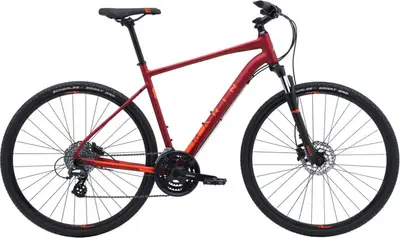

A 700c aluminum frame commuter bike with modest components and hydraulic disc brakes.
Compare the full range

MSRP$629
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NEX
Wheels700c Aluminum
Drivetrain3 × 8
GroupsetAltus, Tourney
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

San Rafael DS2

31 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

4'11" – 5'3"

SM

4'11" – 5'3"

MD

5'2" – 5'7"

LG

5'5" – 5'10"

XL

6'2" – 6'4"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake

Fork

SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment

Travel63mm

Spring TypeCoil

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Headset

FSA No.10-P

Stem

Marin Alloy

Handlebar

Marin Alloy Riser

Saddle

Marin Fitness Plush

Seatpost

Marin Alloy, 27.2mm

TypeRigid

Pedals

Dual Sport Platform

Grips

Marin Ergonomic Locking

Groupset
Rear Derailleur

Shimano Altus 8-Speed

Front Derailleur

Shimano FD-TY710

Crank

Forged aluminum, 48/38/28T, Ring Guard

Shifters

Shimano EF505 3x8-Speed

Cassette

SunRace 8-Speed, 11-32T

Chain

KMC Z7

Brakes

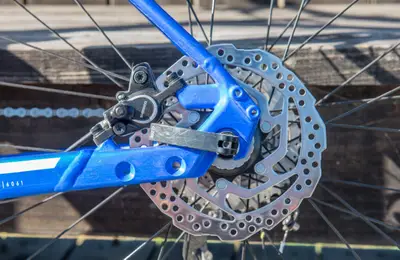

Shimano BR-M200 Hydraulic Disc, 160mm Rotor

TypeHydraulic Disc

Brake Levers

Shimano EF-505 Hydraulic

Wheels
Rims

Marin Aluminum Double Wall, Disc Specific

Spokes

14g Black Stainless Steel

Front Hub

Forged Aluminum Alloy, Centerlock Disc, 32H

Rear Hub

Forged Aluminum Alloy, Centerlock Disc, 32H

Tires

Vee Tire, Rail, 700x40, Wire Bead
