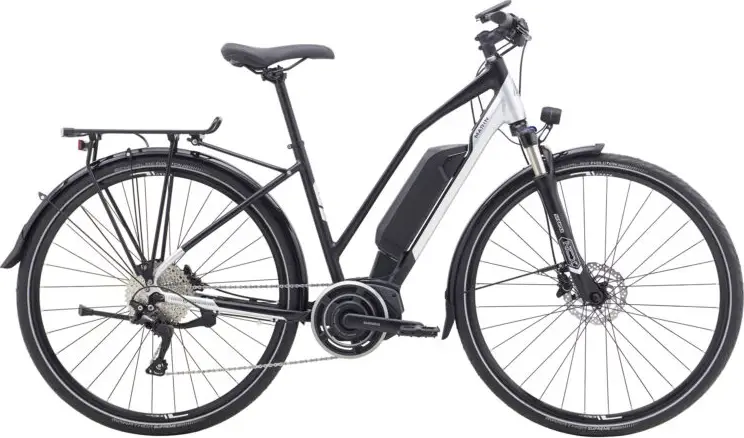

2020 Marin

San Anselmo DS E

A 700c aluminum frame hybrid e-bike with upper mid-range components and hydraulic disc brakes.

MSRP$2,999
FrameAluminum
SuspensionHardtail, 63mm
ForkSuntour NCX
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore, Shimano
MotorShimano 250W 50Nm mid-drive
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Sizing
SM

5'2" – 5'6"

MD

5'4" – 5'10"

LG

5'8" – 6'1"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Series 3 E 6061 Aluminum, 700C wheels, Post Mount Disc Specific Forged Dropouts, Fender, Rack and Integrated Kickstand Mounts

BB StandardSTEPS, Press Fit

Fork

SR Suntour NCXE LOR, Remote Hydraulic Lockout, Adjustable Damping, 63mm Travel

Travel63mm

Spring TypeAir

Bottom Bracket

STEPS, press-fit

Headset

FSA Orbit CE No. 8D

Stem

Marin 3D Forged Alloy

Handlebar

Marin Flat Top Riser

Saddle

Marin City + Sport Plush

Seatpost

Marin Alloy

TypeRigid

Pedals

Dual Sport Platform

Grips

Marin Locking Ergonomic

Groupset
Rear Derailleur

Shimano Deore 10-Speed

Crank

Shimano STEPS E6000

Shifters

Shimano Deore

Cassette

Sunrace 10-Speed 11-42t

Chain

Shimano Deore

Brakes

Shimano BR-M365 Hydraulic Disc, 160mm Rotor

TypeHydraulic Disc

Brake Levers

Shimano Hydraulic

Wheels
Rims

Marin Aluminum Double Wall, Disc Specific

Spokes

14g Black Stainless Steel

Front Hub

Forged Aluminum Alloy, 6-Bolt Disc, 32H

Rear Hub

Forged Aluminum Alloy, 6-Bolt Disc, 32H

Tires

Continental, E-Contact, 700Cx42, Reflective Sidewall, Puncture Protection

Electric Components
Motor

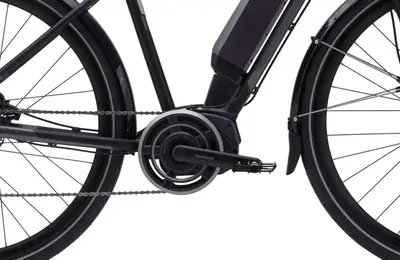

Shimano STEPS E6000, 44T Chainring

Accessories
Lights

Supernova

Fenders

SKS Bluemels B50

Racks

Racktime Stand It Shine w/ Integrated Rear Light
