2020 Marin
Pine Mountain E2
A 27.5″ steel frame hardtail trail e-bike with upper mid-range components.
Compare the full range
| MSRP | $4,199 |
|---|---|
| Frame | Steel |
| Suspension | Hardtail, 120mm |
| Fork | RockShox 35 Gold RL |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, SLX |
| Motor | Shimano 250W 70Nm mid-drive |
| Battery | Shimano 500Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'4" – 5'8"
5'6" – 5'11"
5'9" – 6'1"
5'11" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2020 · McCoy
Overall, Marin did a great job targeting the adventure bike rider and...
Jun 2020 · Logan Watts
The 2020 Pine Mountain 2 is an affordable bikepacking-specific trail hardtail with a record number of threaded eyelets. Here's the full review…
A happy-medium geometry that offers a snappy feel on the trail, solid climbing prowess, and a fairly stable ride
Built around 29 x 2.6” tires
Unbelievable amount of bosses and a downloadable diagram for making a custom frame bag
Well-priced as an entry level bikepacking bike, but there are a few needed upgrades
Vee Flow Snap tires are horrible and dangerous
Geometry misses the ideal mark with a reach that’s a little too short
Not as compliant as the older model
Heavy build with few disappointing components; handlebar is too stiff and fork is just okay
Mar 2020 · Pat Donahue
The redesigned Marin Pine Mountain 2 is a supremely versatile bike that is comfortable in many situations. This steel bicycle was designed with a clear...
Sep 2017
It's rare for a bike under 2K catches our eye but the Marin Pine Mountain 1 has much to offer at $700 under that mark...
Dec 2016 · Alan Muldoon
The Marin Pine Mopuntain rides more like an adventure bike than a trail hardtail designed to get your pulse racing.
Steel frame absorbs vibrations
Geometry needs a refresh
| Frame | Series 3 Double Butted & Heat Treated CrMo, 27.5+ Wheels, Cast Motor Mount, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | RockShox FS 35, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset Travel: 120mm Spring Type: Air |
| Bottom Bracket | FSA Outboard Cartridge Bearings |
| Headset | FSA Orbit, NO.42/ACB. C-40-ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Handlebar | Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep |
| Saddle | Marin Pine Mountain Trail |
| Seatpost | X-Fusion Manic Dropper Post w/ 1x Remote, Size S 125mm travel, All Other Sizes: 150mm Travel, 30.9mm Type: Dropper |
| Pedals | Nylon Platform |
| Grips | Marin BearPaw Locking |
| Rear Derailleur | Shimano XT 12-Speed |
|---|---|
| Front Derailleur | - |
| Crank | Shimano E8000 w/ Steel Narrow-Wide 38T Chainring |
| Shifters | Shimano SLX 12-Speed |
| Cassette | SunRace 12-Speed, 11-50T |
| Chain | Shimano SLX 12-Speed |
| Brakes | Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor Type: Hydraulic Disc |
| Brake Levers | Shimano MT500 Hydraulic |
| Rims | Marin Aluminum Double Wall, 38mm Inner, Disc Specific, Tubeless Compatible |
|---|---|
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Alloy, 110x15mm, Centerlock Disc, 32H |
| Rear Hub | Forged Alloy, 148x12mm, Centerlock Disc, 32H |
| Tires | Vee Tire Crown Gem, 27.5x2.8", Synthesis Sidewall, Tubeles Compatible |

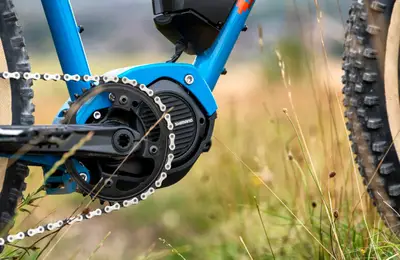

| Motor | Shimano STEPS E8000 System |
|---|---|
| Battery | Shimano E8010, 500Wh Recycling Program: ♻️ Call2Recycle |
